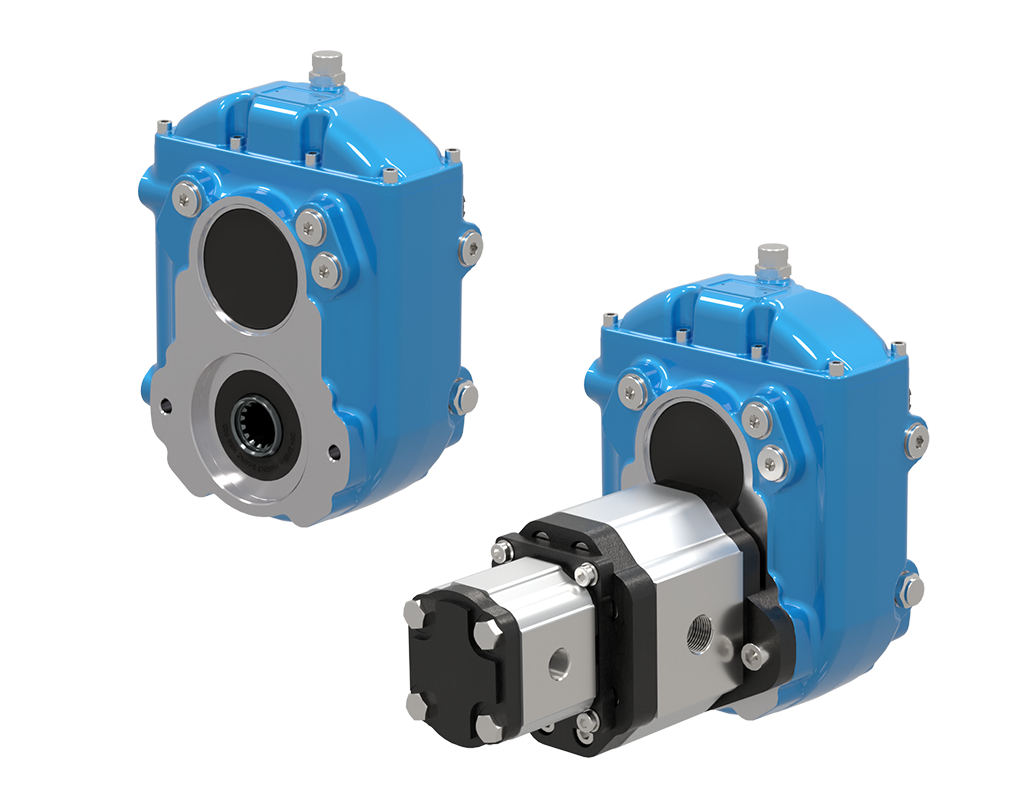

Power Take-Off (PTO) Gearboxes
Power Take-Off (PTO) gearboxes are used primarily for connecting hydraulic pumps to agricultural tractors. Speed increaser, speed reducer and splitter options.
Power Take-Off (PTO) Gearboxes
ML and B Series gearboxes primarily connect hydraulic pumps to agricultural tractor power take-offs, while the RD Series is designed to reduce hydraulic motor speed.
Features
- Multiple pump flanges and coupling options
- Different sizes according to input power and pump performances
- Different ratios available
- Special painting cycles according EN ISO 12944
View More Info- Catalog, Spec Sheet Click Here
| Ratio | Power [kw] |
|---|---|
| 0,66 - 5 | 6 - 100 |
Tech Data - PTO Gearboxes
| Series | Ratio | Power [kw] |
|---|---|---|
| ML 32 | 1:1 up to 1:3,8 | 10 |
| ML 52 | 1:1 up to 1:3,8 | 30 |
| B580 | 1:1 up to 1:4,8 | 30 |
| B585 | 1:1 up to 1:5 | 40 |
| B600 | 1:1 up to 1:3,8 | 50 |
| B502 | 1:1 up to 1:3,8 | 55 |
| B582 | 1:1 up to 1:3,8 | 55 |
| B602 | 1:1 up to 1:3,8 | 100 |
| RD33 | 0,66 up to 0,26 | 6 |
| RD42 | 0,66 up to 0,29 | 6 |
| RD52 | 0,66 up to 0,26 | 12 |
