Motor Pumps
EP and MP Series motor pumps provide compact, efficient hydraulic solutions — EP for higher power, MP for lighter, space-saving needs.

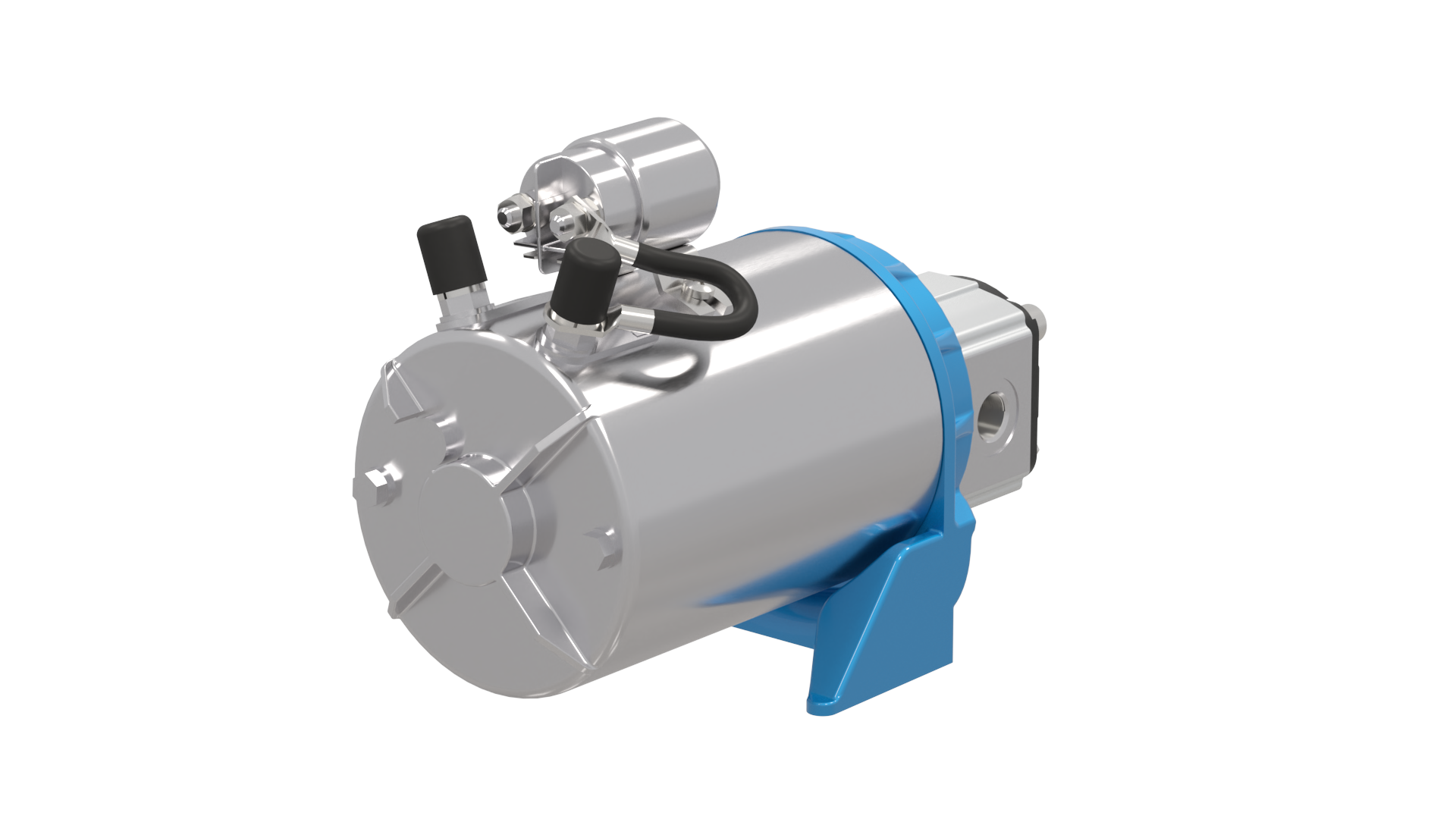

EP Series - Motor Pumps
Motor pumps with Ø115 mm motors and Gr.1 gear pumps, DC motors up to 2,2 kW.
View More Info- Catalog, Spec Sheet Click Here

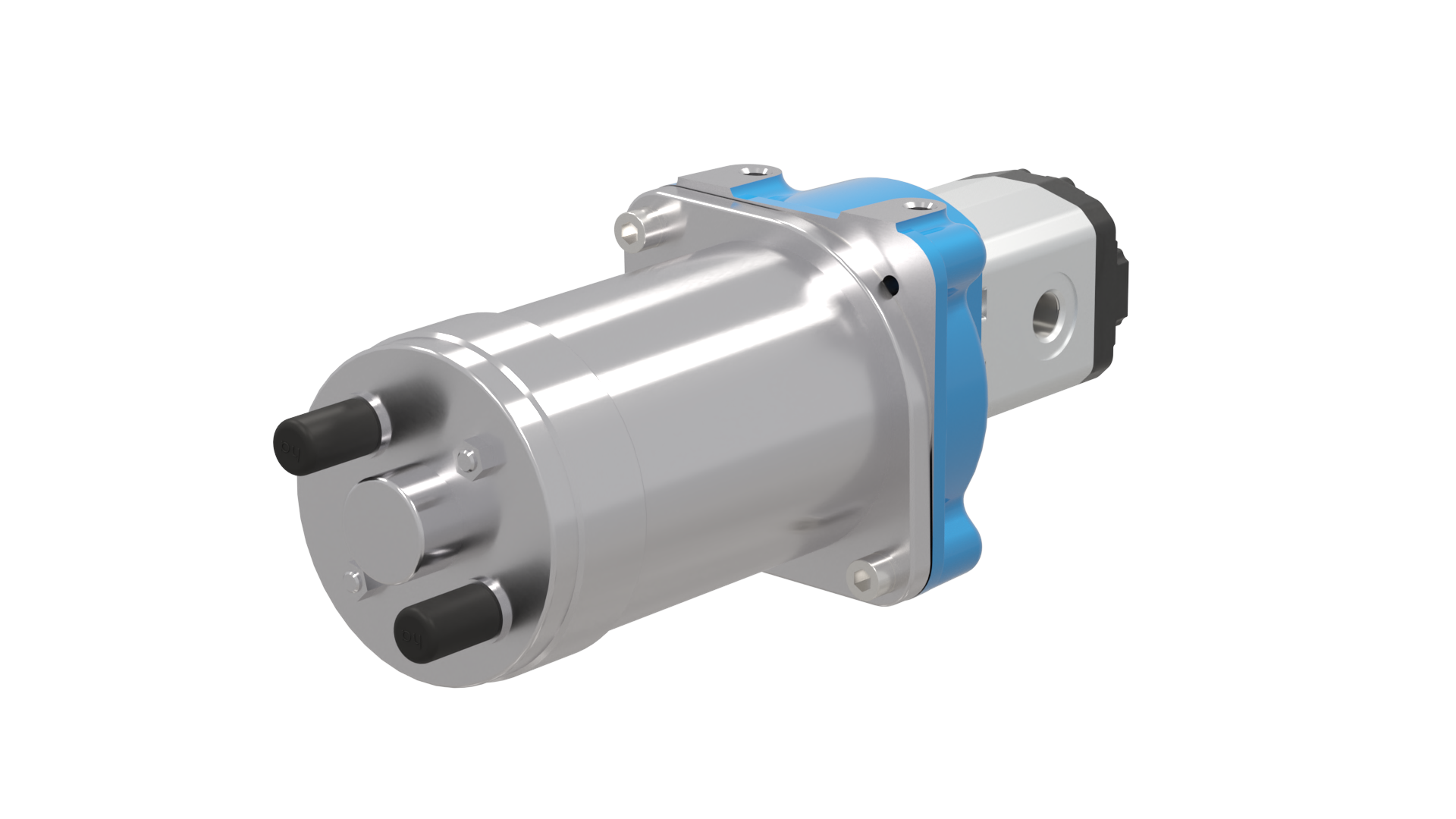

MP Series - Motor Pumps
Motor pumps with Ø80 mm motors and Gr.0.5 gear pumps, up to 0,8kW.
EP Series Tech Data
Component Pumps
| Displacement range [cm³/rev] |
Flow [l/min] |
Working pressure [bar] |
Peak pressure [rpm] |
|---|---|---|---|
| 1,2 | 6 | 250 | 290 |
| 1,7 | 8,5 | 250 | 290 |
| 2,2 | 11 | 250 | 290 |
| 2,6 | 13 | 250 | 290 |
| 3,2 | 16 | 250 | 290 |
| 3,8 | 17,1 | 250 | 290 |
| 4,3 | 19,35 | 250 | 290 |
| 4,8 | 19,2 | 225 | 260 |
| 6 | 22,5 | 185 | 215 |
Component Motor DC
| Voltage [V] |
Frame [mm] |
Power [kW] |
|---|---|---|
| 12 | Ø115 | 1,5 |
| 12 | Ø115 | 1,6 |
| 24 | Ø115 | 2,0 |
| 24 | Ø115 | 2,2 |
MP Series Tech Data
Component Pumps
| Group | Displacement range [cm³/rev] |
Flow [l/min] |
Working pressure [bar] |
Peak pressure [rpm] |
|---|---|---|---|---|
| 0,5 | 0,25 | 1,75 | 230 | 270 |
| 0,5 | 0,45 | 3,15 | 230 | 270 |
| 0,5 | 0,56 | 3,64 | 230 | 270 |
| 0,5 | 0,75 | 4,87 | 230 | 270 |
| 0,5 | 0,92 | 5,52 | 230 | 270 |
| 0,5 | 1,25 | 7,5 | 230 | 270 |
Component Motor DC
| Voltage [V] |
Frame [mm] |
Power [kW] |
|---|---|---|
| 12 | Ø80 | 0,35 |
| 12 | Ø80 | 0,7 |
| 24 | Ø80 | 0,4 |
| 24 | Ø80 | 0,8 |
