Mini Power Packs

A full range of compact mini power units designed for various industrial applications.

Brand

Related Markets

Hydraulics

Overview
Specifications

MC Series | FP Series | DTR Series | MK Series

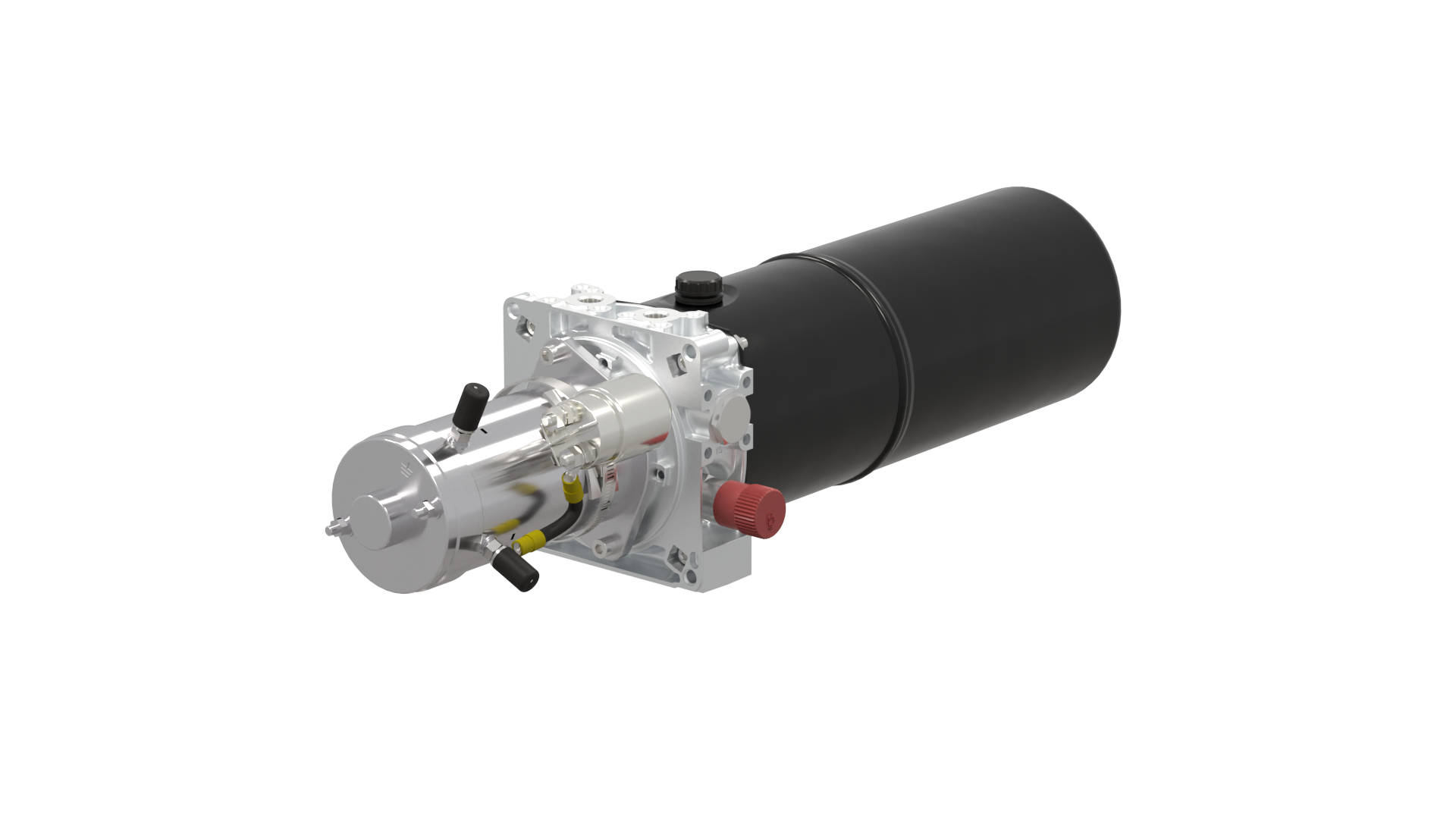

MC Series

Mini powerpacks with 4 cavities for single and double acting circuits.

Circuit Schematic

MC-A: MC version for double and single acting circuits with adjustable speed lowering control
MC-B: MC version for double and single acting circuits with fixed speed lowering control

View More Info, Spec Sheet Click Here View DC Motors Catalog Click Here

FP Series

Mini power packs with flexible design thanks to multiple valve seats. Several circuits layout available.

Circuit Schematic

FP-A: FP version with two cavities, for double and single acting circuits with fix speed lowering control
FP-C: FP version with four cavities for double and single acting circuits, with fix and adjustable speed lowering control
FP-E: FP version with two cavities for double acting circuits with 4/2 and 4/3 solenoid valve control
FP-L: FP version with four cavities for two single acting circuit control

View More Info, Spec Sheet Click Here View DC Motors Catalog Click Here

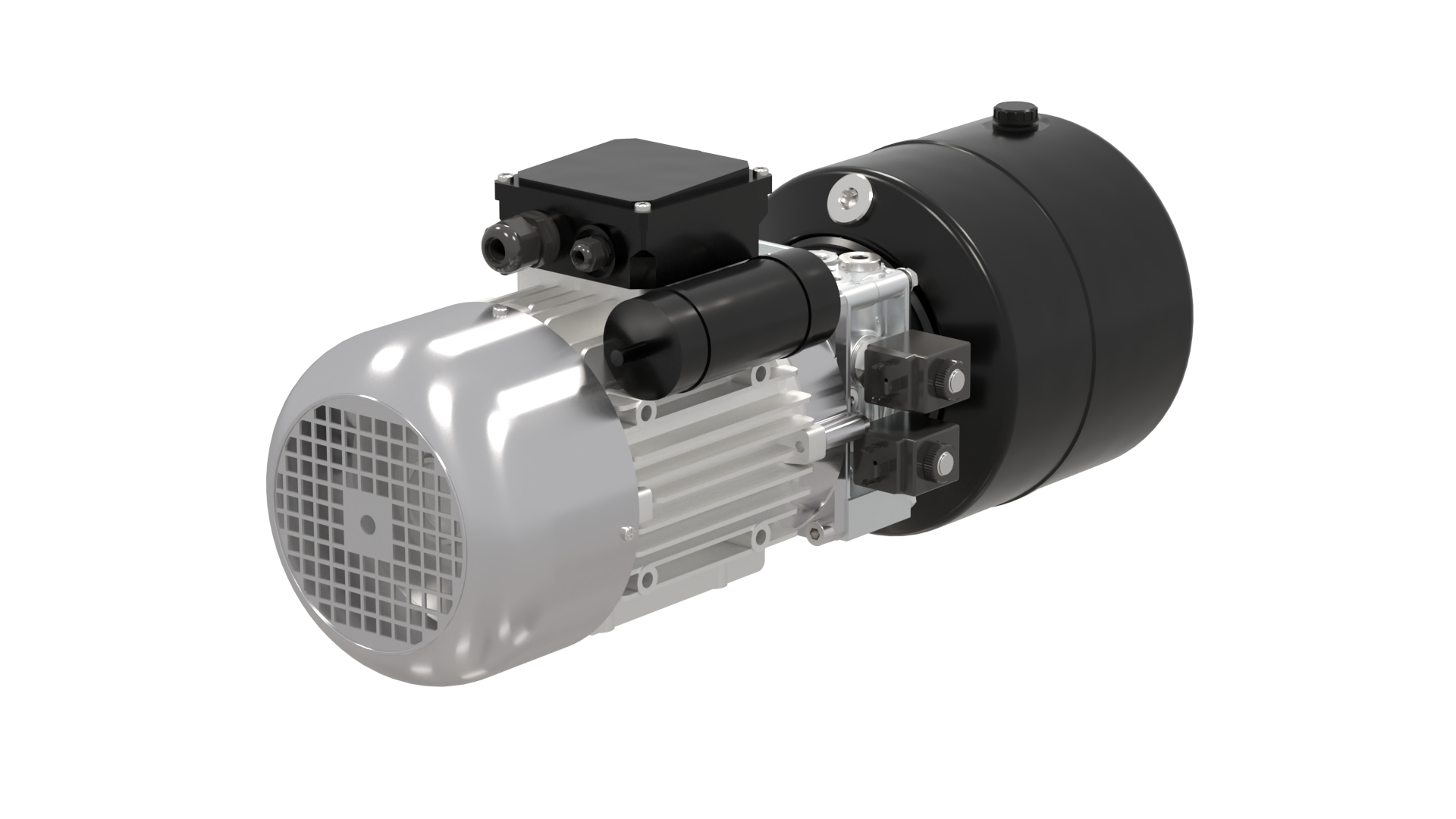

DTR Series

Custom mini power packs for telescopic dock levelers.

View More Info- Catalog, Spec Sheet Click Here View DC Motors Catalog Click Here

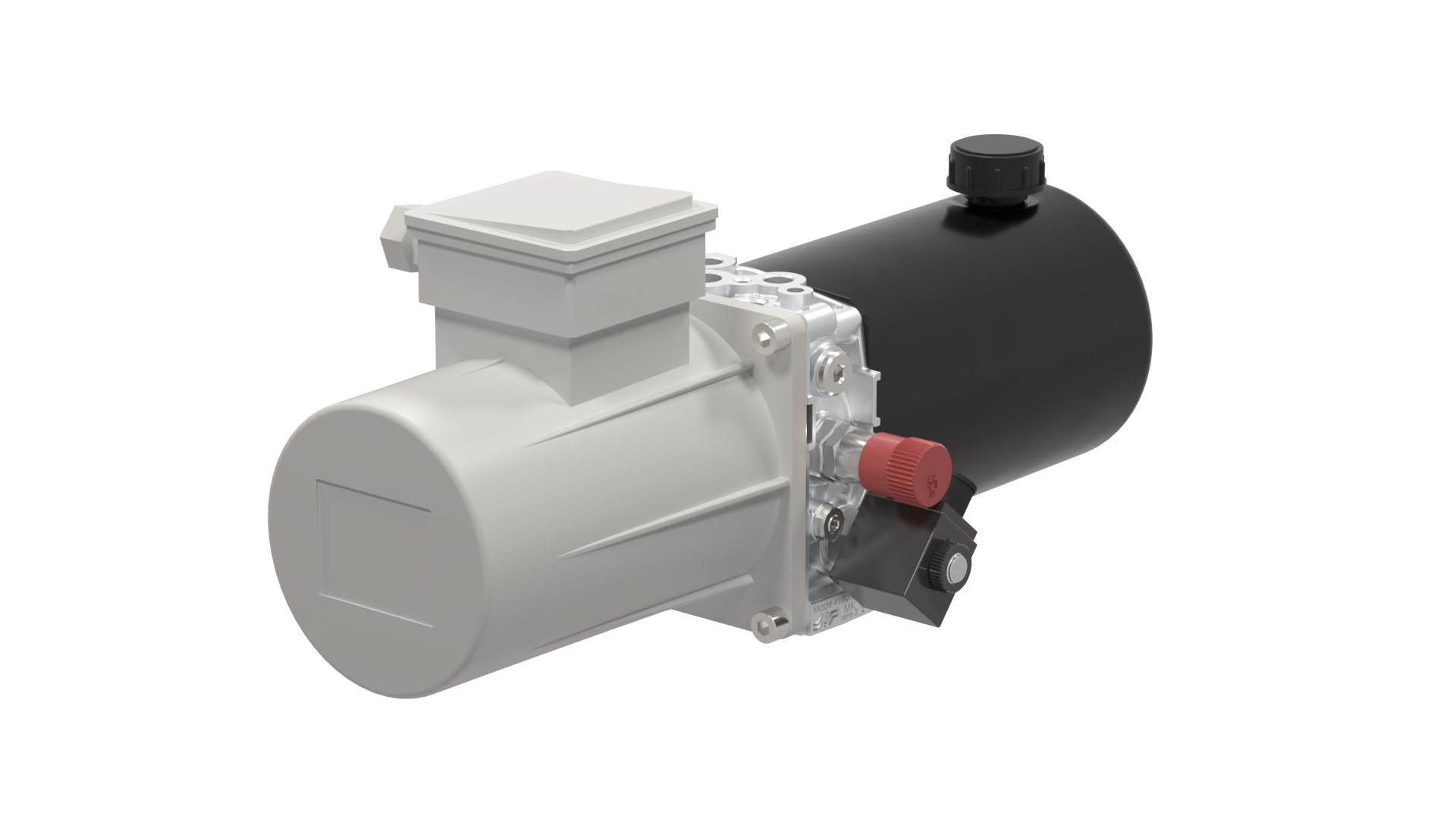

MK Series

Custom mini power packs for hanged/swing lip dock levelers.

MC Series Tech Data

Component Pumps

Group	Displacement range [cm³/rev]	Max flow [l/min]	Max working pressure [bar]	Peak pressure [rpm]
0,5	0,25	1,75	230	270
0,5	0,45	3,15	230	270
0,5	0,56	3,64	230	270
0,5	0,75	4,87	230	270
0,5	0,92	5,52	230	270
1	0,8	4	170	210
1	1	6	170	210
1	1,2	8,5	250	290
1	1,7	11	250	290
1	2,2	13	250	290
1	2,6	16	250	290
1	3,2	17,1	250	290
1	3,8	19,35	250	290
1	4,3	19,2	250	290
1	4,8	22,5	225	260
1	6	22,5	185	215
1	7,8	27,3	140	160
1	9,8	34,3	110	125

Component Tanks

Volume [l]	Material
1 - 2 - 3 - 5 - 6 - 7- 8 - 9 - 10 - 12 - 14 - 25	Steel
1,5	Polyethylene

Component Motor AC

Phases / Poles	Frame [mm]	Power [kW]	Voltage
Single phase / 2	Ø71	0,37 - 0,55 - 0,75 - 1,10	230 VAC 50 Hz
Single phase / 2	Ø80	0,75 - 1,1	230 VAC 50 Hz
Single phase / 2	Ø90	1,5 - 2,2	230 VAC 50 Hz
Single phase / 2	Ø100	3	230 VAC 50 Hz
Single phase / 4	Ø71	0,25 - 0,37 - 0,85	230 VAC 50 Hz
Single phase / 4	Ø80	0,55 - 0,75	230 VAC 50 Hz
Single phase / 4	Ø90	1,1 - 1,5 - 1,8-3	230 VAC 50 Hz
Single phase / 4	Ø100	2,2	230 VAC 50 Hz
Three phase / 2	Ø63	0,18 - 0,25	230/400 VAC 50 Hz
Three phase / 2	Ø71	0,37 - 0,55 - 0,75 - 1,1	230/400 VAC 50 Hz
Three phase / 2	Ø80	0,75 - 1,1 - 2,7	230/400 VAC 50 Hz
Three phase / 2	Ø90	1,5 - 2,2	230/400 VAC 50 Hz
Three phase / 2	Ø100	3	230/400 VAC 50 Hz
Three phase / 2	Ø112	4	230/400 VAC 50 Hz
Three phase / 4	Ø63	0,12 - 0,18	230/400 VAC 50 Hz
Three phase / 4	Ø71	0,25 - 0,37 - 0,75	230/400 VAC 50 Hz
Three phase / 4	Ø80	0,55 - 0,75 - 2,2 - 3	230/400 VAC 50 Hz
Three phase / 4	Ø90	1,10 - 1,5	230/400 VAC 50 Hz
Three phase / 4	Ø100	2,2 - 3	230/400 VAC 50 Hz
Three phase / 4	Ø112	4	230/400 VAC 50 Hz

Component Motor DC

Voltage [V]	Frame [mm]	Power [kW]
12	Ø80	0,5
12	Ø80	0,7
12	Ø115	1,5
12	Ø115	1,6
24	Ø80	0,4
24	Ø80	0,8
24	Ø115	2,0
24	Ø115	2,2
24	Ø125	3,0

FP Series Tech Data

Component Pumps

Group	Displacement range [cm³/rev]	Max flow [l/min]	Max working pressure [bar]	Peak pressure [rpm]
0.5	0,25	1.75	230	270
0.5	0,45	3.15	230	270
0.5	0,56	3,64	230	270
0.5	0,75	4,87	230	270
0.5	0,92	5,52	230	270
1	0,8	4	170	210
1	1	6	170	210
1	1,2	8,5	250	290
1	1,7	11	250	290
1	2,2	13	250	290
1	2,6	16	250	290
1	3,2	17,1	250	290
1	3,8	19,35	250	290
1	4,3	19,2	250	290
1	4,8	22,5	225	260
1	6	22,5	185	215
1	7,8	27,3	140	160
1	9,8	34,3	110	125

Component Tanks

Volume [l]	Material
1 - 2 - 3 - 5 - 6 - 7- 8 - 9 - 10 - 12 - 14 - 25	Steel
1,5	Polyethylene

Component Motor AC

Phases / Poles	Frame [mm]	Power [kW]	Voltage
Single phase / 2	Ø71	0,37 - 0,55 - 0,75 - 1,10	230 VAC 50 Hz
Single phase / 2	Ø80	0,75 - 1,1	230 VAC 50 Hz
Single phase / 2	Ø90	1,5 - 2,2	230 VAC 50 Hz
Single phase / 2	Ø100	3	230 VAC 50 Hz
Single phase / 4	Ø71	0,25 - 0,37 - 0,85	230 VAC 50 Hz
Single phase / 4	Ø80	0,55 - 0,75	230 VAC 50 Hz
Single phase / 4	Ø90	1,1 - 1,5 - 1,8-3	230 VAC 50 Hz
Single phase / 4	Ø100	2,2	230 VAC 50 Hz
Three phase / 2	Ø63	0,18 - 0,25	230/400 VAC 50 Hz
Three phase / 2	Ø71	0,37 - 0,55 - 0,75 - 1,1	230/400 VAC 50 Hz
Three phase / 2	Ø80	0,75 - 1,1 - 2,7	230/400 VAC 50 Hz
Three phase / 2	Ø90	1,5 - 2,2	230/400 VAC 50 Hz
Three phase / 2	Ø100	3	230/400 VAC 50 Hz
Three phase / 2	Ø112	4	230/400 VAC 50 Hz
Three phase / 4	Ø63	0,12 - 0,18	230/400 VAC 50 Hz
Three phase / 4	Ø71	0,25 - 0,37 - 0,75	230/400 VAC 50 Hz
Three phase / 4	Ø80	0,55 - 0,75 - 2,2 - 3	230/400 VAC 50 Hz
Three phase / 4	Ø90	1,10 - 1,5	230/400 VAC 50 Hz
Three phase / 4	Ø100	2,2 - 3	230/400 VAC 50 Hz
Three phase / 4	Ø112	4	230/400 VAC 50 Hz

Component Motor DC

Voltage [V]	Frame [mm]	Power [kW]
12	Ø80	0,35
12	Ø80	0,7
12	Ø115	1,5
12	Ø115	1,6
24	Ø80	0,4
24	Ø80	0,8
24	Ø115	2,0
24	Ø115	2,2
24	Ø125	3,0

DTR Series Tech Data

Component Pumps

Group	Displacement range [cm³/rev]	Max flow [l/min]	Max working pressure [bar]	Peak pressure [rpm]
1	0,8	4	170	210
1	1	6	170	210
1	1,2	8,5	250	290
1	1,7	11	250	290
1	2,2	13	250	290
1	2,6	16	250	290
1	3,2	17,1	250	290
1	3,8	19,35	250	290
1	4,3	19,2	250	290
1	4,8	22,5	225	260
1	6	22,5	185	215
1	7,8	27,3	140	160
1	9,8	34,3	110	125

Component Tanks

Volume [l]	Material
2,5 - 5 - 8 - 10	Steel
1,5 - 2,5 - 4 - 7 -10	Plastic

Component Motor AC

Phases / Poles	Frame [mm]	Power [kW]	Voltage
Single phase / 2	Ø71	0,37 - 0,55 - 0,75 - 1,10	230 VAC 50 Hz
Single phase / 2	Ø80	0,75 - 1,1	230 VAC 50 Hz
Single phase / 2	Ø90	1,5 - 2,2	230 VAC 50 Hz
Single phase / 2	Ø100	3	230 VAC 50 Hz
Single phase / 4	Ø71	0,25 - 0,37 - 0,85	230 VAC 50 Hz
Single phase / 4	Ø80	0,55 - 0,75	230 VAC 50 Hz
Single phase / 4	Ø90	1,1 - 1,5 - 1,8-3	230 VAC 50 Hz
Single phase / 4	Ø100	2,2	230 VAC 50 Hz
Three phase / 2	Ø63	0,18 - 0,25	230/400 VAC 50 Hz
Three phase / 2	Ø71	0,37 - 0,55 - 0,75 - 1,1	230/400 VAC 50 Hz
Three phase / 2	Ø80	0,75 - 1,1 - 2,7	230/400 VAC 50 Hz
Three phase / 2	Ø90	1,5 - 2,2	230/400 VAC 50 Hz
Three phase / 2	Ø100	3	230/400 VAC 50 Hz
Three phase / 2	Ø112	4	230/400 VAC 50 Hz
Three phase / 4	Ø63	0,12 - 0,18	230/400 VAC 50 Hz
Three phase / 4	Ø71	0,25 - 0,37 - 0,75	230/400 VAC 50 Hz
Three phase / 4	Ø80	0,55 - 0,75 - 2,2 - 3	230/400 VAC 50 Hz
Three phase / 4	Ø90	1,10 - 1,5	230/400 VAC 50 Hz
Three phase / 4	Ø100	2,2 - 3	230/400 VAC 50 Hz
Three phase / 4	Ø112	4	230/400 VAC 50 Hz

MK Series Tech Data

Component Pumps

Group	Displacement range [cm³/rev]	Max flow [l/min]	Max working pressure [bar]	Peak pressure [rpm]
1	0,8	4	170	210
1	1	6	170	210
1	1,2	8,5	250	290
1	1,7	11	250	290
1	2,2	13	250	290
1	2,6	16	250	290
1	3,2	17,1	250	290
1	3,8	19,35	250	290
1	4,3	19,2	250	290
1	4,8	22,5	225	260
1	6	22,5	185	215
1	7,8	27,3	140	160
1	9,8	34,3	110	125

Component Tanks

Volume [l]	Material
1 - 2 - 3 - 5 - 6 - 7- 8 - 9 - 10 - 12	Steel
1,5 - 2,5 - 4 - 7 -10	Plastic

Component Motor AC

Phases / Poles	Frame [mm]	Power [kW]	Voltage
Single phase / 2	Ø71	0,37 - 0,55 - 0,75 - 1,10	230 VAC 50 Hz
Single phase / 2	Ø80	0,75 - 1,1	230 VAC 50 Hz
Single phase / 2	Ø90	1,5 - 2,2	230 VAC 50 Hz
Single phase / 2	Ø100	3	230 VAC 50 Hz
Single phase / 4	Ø71	0,25 - 0,37 - 0,85	230 VAC 50 Hz
Single phase / 4	Ø80	0,55 - 0,75	230 VAC 50 Hz
Single phase / 4	Ø90	1,1 - 1,5 - 1,8 - 3	230 VAC 50 Hz
Single phase / 4	Ø100	2,2	230 VAC 50 Hz
Three phase / 2	Ø63	0,18 - 0,25	230/400 VAC 50 Hz
Three phase / 2	Ø71	0,37 - 0,55 - 0,75 - 1,1	230/400 VAC 50 Hz
Three phase / 2	Ø80	0,75 - 1,1 - 2,7	230/400 VAC 50 Hz
Three phase / 2	Ø90	1,5 - 2,2	230/400 VAC 50 Hz
Three phase / 2	Ø100	3	230/400 VAC 50 Hz
Three phase / 2	Ø112	4	230/400 VAC 50 Hz
Three phase / 4	Ø63	0,12 - 0,18	230/400 VAC 50 Hz
Three phase / 4	Ø71	0,25 - 0,37 - 0,75	230/400 VAC 50 Hz
Three phase / 4	Ø80	0,55 - 0,75 - 2,2 - 3	230/400 VAC 50 Hz
Three phase / 4	Ø90	1,10 - 1,5	230/400 VAC 50 Hz
Three phase / 4	Ø100	2,2 - 3	230/400 VAC 50 Hz
