Micro Power Packs
A full range of compact micro power units designed for space-limited applications.

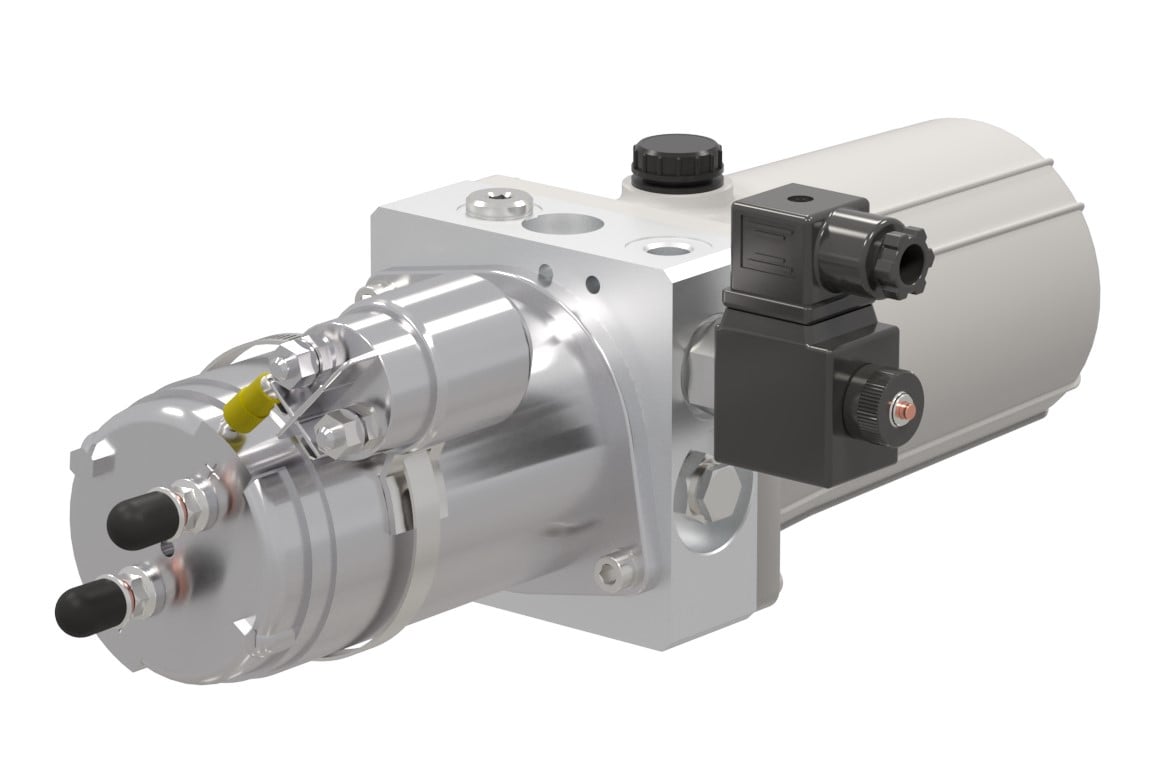

FR Series - Micro Power Packs
Micro power packs for space demanding applications, 3 cavities for single and double acting circuits.
Circuit Schematic
- FR-A: FR version with 2 cavities, for double and single acting circuits with fix speed lowering control.
- FR-C: FR version with 4 cavities for double and single acting circuits, with fix and adjustable speed lowering control.
- FR-E: FR version with 2 cavities for double acting circuits with 4/2 and 4/3 solenoid valve control.
Component Valves
- Solenoid cartridge valve 2/2 NO/NC, ON/OFF or proportional
- Manual cartridge lowering valve, ON/OFF or proportional
- Fixed compensated flow control valves
- Modular stackable CETOP 3 blocks and customized circuits
View More Info, Spec Sheet Click Here View DC Motors Catalog Click Here

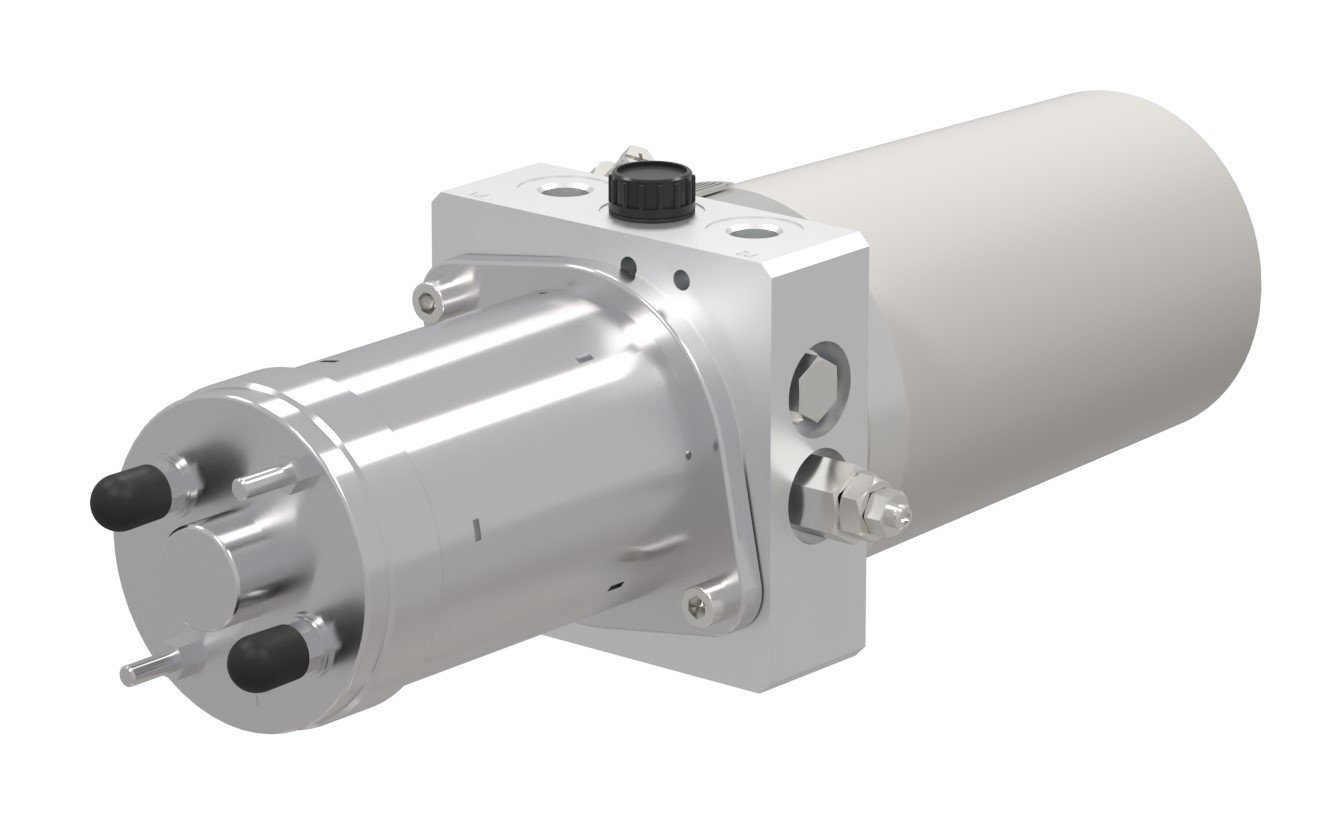

FW Series - Micro Power Packs
Micro powerpacks for double acting circuits with reversible pump.
Circuit Schematic
- FW: basic FW circuit
- FW-1: same as FW plus exceeding flow discharge
- FW-2: same as FW-1 plus manual emergency override
Circuit Schematic
- Valves
- Pressure relief valves and pilot operated check valves
- Manual override
- Cylinder differential volume drain valve
View More Info- Catalog, Spec Sheet Click Here View DC Motors Catalog Click Here
FR Series Tech Data
Component Pumps
| Displacement range [cm³/rev] |
Max flow [l/min] |
Max working pressure [bar] |
Peak pressure [rpm] |
|---|---|---|---|
|
0,25 |
1,75 |
230 |
270 |
|
0,45 |
3,15 |
230 |
270 |
|
0,56 |
3,64 |
230 |
270 |
|
0,75 |
4,87 |
230 |
270 |
|
0,92 |
5,52 |
230 |
270 |
|
1,25 |
7,5 |
230 |
270 |
Component Tanks
| Volume [l] |
Material |
|---|---|
| 1 - 2 - 3 - 5 - 6 - 8 | Steel |
| 0,5 - 1 - 2 | Plastic |
Component Motor AC
| Phases / Poles | Frame [mm] |
Power [kW] |
Voltage |
|---|---|---|---|
| Single phase / 2 | Ø71 | 0,37 - 0,55 | 230 VAC 50 Hz |
| Single phase / 2 | Ø80 | 0,75 - 1,10 | 230 VAC 50 Hz |
| Single phase / 4 | Ø71 | 0,25 - 0,37 | 230 VAC 50 Hz |
| Single phase / 4 | Ø80 | 0,55 - 0,75 | 230 VAC 50 Hz |
| Three phases / 2 | Ø63 | 0,18 - 0,25 | 230/400 VAC 50 Hz |
| Three phases / 2 | Ø71 | 0,37 - 0,55 | 230/400 VAC 50 Hz |
| Three phases / 2 | Ø80 | 0,75 - 1,10 | 230/400 VAC 50 Hz |
| Three phases / 4 | Ø63 | 0,12 - 0,18 | 230/400 VAC 50 Hz |
| Three phases / 4 | Ø71 | 0,25 - 0,37 | 230/400 VAC 50 Hz |
| Three phases / 4 | Ø80 | 0,55 - 0,75 | 230/400 VAC 50 Hz |
Component Motor DC
| Voltage [V] |
Frame [mm] |
Power [kW] |
|---|---|---|
| 12 | Ø80 | 0,35 |
| 12 | Ø80 | 0,7 |
| 24 | Ø80 | 0,4 |
| 24 | Ø80 | 0,8 |
FW Series Tech Data
Component Pumps
| Displacement range [cm³/rev] |
Max flow [l/min] |
Max working pressure [bar] |
Peak pressure [rpm] |
|
|---|---|---|---|---|
| 0,5 | 0,25 | 1,75 | 230 | 270 |
| 0,5 | 0,45 | 3,15 | 230 | 270 |
| 0,5 | 0,56 | 3,64 | 230 | 270 |
| 0,5 | 0,75 | 4,87 | 230 | 270 |
| 0,5 | 0,92 | 5,52 | 230 | 270 |
| 0,5 | 1,25 | 7,5 | 230 | 270 |
Component Tanks
| Volume [l] |
Material |
|---|---|
| 0,5 - 1 - 2 | Nylon |
| 1 | Nylon (glass reinforced) |
Component Motor AC
| Phases / Poles | Frame [mm] |
Power [kW] |
Voltage |
|---|---|---|---|
| Single phase / 2 | Ø71 | 0,37 - 0,55 | 230 VAC 50 Hz |
| Single phase / 2 | Ø80 | 0,75 - 1,10 | 230 VAC 50 Hz |
| Single phase / 4 | Ø71 | 0,25 - 0,37 | 230 VAC 50 Hz |
| Single phase / 4 | Ø80 | 0,55 - 0,75 | 230 VAC 50 Hz |
| Three phases / 2 | Ø63 | 0,18 - 0,25 | 230/400 VAC 50 Hz |
| Three phases / 2 | Ø71 | 0,37 - 0,55 | 230/400 VAC 50 Hz |
| Three phases / 2 | Ø80 | 0,75 - 1,10 | 230/400 VAC 50 Hz |
| Three phases / 4 | Ø63 | 0,12 - 0,18 | 230/400 VAC 50 Hz |
| Three phases / 4 | Ø71 | 0,25 - 0,37 | 230/400 VAC 50 Hz |
| Three phases / 4 | Ø80 | 0,55 - 0,75 | 230/400 VAC 50 Hz |
Component Motor DC
| Voltage [V] |
Frame [mm] |
Power [kW] |
|---|---|---|
| 12 | Ø80 | 0,7 |
| 24 | Ø80 | 0,8 |
| 12 | Ø80 | 0,35 |
| 24 | Ø80 | 0,4 |
