Gear Motors

Fixed-displacement gear motors designed for hydraulic systems, available in aluminum and cast iron configurations.

Brand

Related Markets

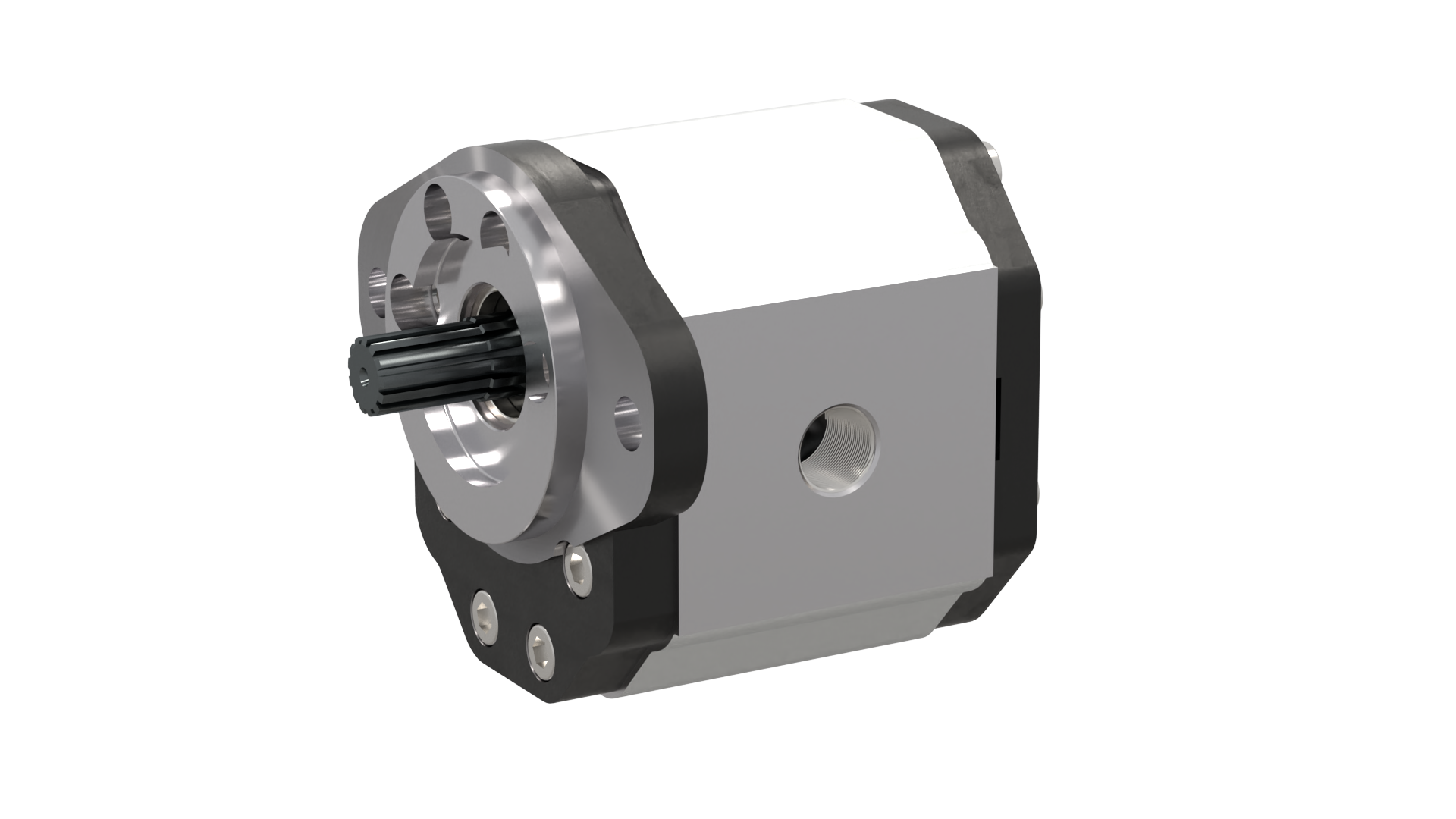

ALU Gear Motors Gr. 1 – 2 – 3

General purpose aluminum gear motors.

Displacement range [cm³/rev]	Max flow [l/min] ]	Max working pressure [bar]	Max speed [rpm]
0,73 - 90	180	260	5.000

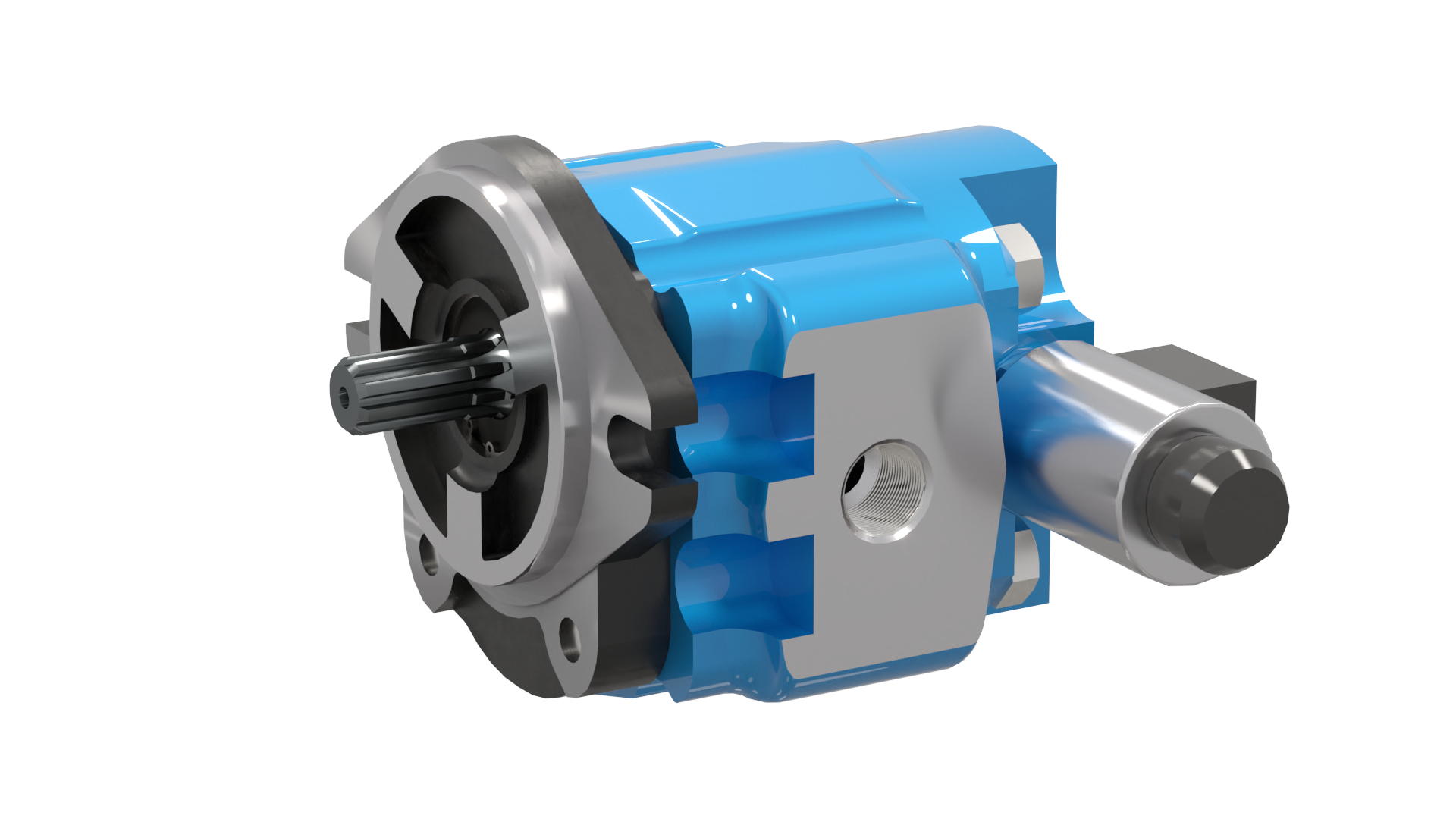

Gr.2 gear motor with high strength cast iron body for heavy duty applications and high temperature environment.

Displacement range [cm³/rev]	Max flow [l/min] ]	Max working pressure [bar]	Max speed [rpm]
4,1 - 30	70	270	4.000

Size	Displacement [cm³/rev]	Working pressure [bar]	Peak pressure [bar]	Max speed [rpm]	Min working speed [rpm]	Max inlet flow [l/min]	Torque [Nm]
07	0,73	200	240	5.000	650	3,65	2,3
16	1,05	250	290	5.000	650	5,25	4,2
20	1,45	260	300	5.000	650	7,25	6,0
25	1,8	260	300	5.000	650	9	7,5
32	2,45	260	300	5.000	650	12,25	10,1
40	3,8	260	300	4.500	650	17,1	15,7
49	4,7	240	280	4.500	650	21,15	18,0
58	5,55	200	240	4.000	650	22,2	17,7
65	6,25	190	230	3.750	650	23,4	18,9
79	7,6	170	220	3.500	650	26,6	20,6

Size	Displacement [cm³/rev]	Working pressure [bar]	Peak pressure [bar]	Max speed [rpm]	Min working speed [rpm]	Max inlet flow [l/min]	Torque [Nm]
04	4,1	250	300	4.000	600	16,4	16,3
06	6,2	250	300	3.500	600	21,7	24,7
08	8,2	250	300	3.500	600	28,7	32,6
11	11,2	250	300	3.500	500	39,2	44,6
14	14	240	300	3.000	500	42	5,5
16	16	240	300	3.000	500	48	61,1
20	20	200	240	3.000	500	60	63,7
22	22,5	170	210	2.500	500	56,25	60,9
25	25,1	170	210	2.500	500	62,75	67,9
28	28	140	180	2.500	500	70	62,4
30	30	130	170	2.000	500	60	62,1

Size	Displacement [cm³/rev]	Working pressure [bar]	Peak pressure [bar]	Max speed [rpm]	Min working speed [rpm]	Max inlet flow [l/min]	Torque [Nm]
22	22	260	300	4.000	350	88	91,1
28	28	260	300	4.000	350	112	115,9
32	32	260	300	4.000	350	128	132,5
38	38	240	280	3.500	350	133	145,2
42	42	240	280	3.500	350	147	160,5
48	48	240	280	3.500	350	168	183,4
53	53	220	250	3.000	350	159	185,7
63	63	200	240	2.500	350	157,5	200,6
73	73	180	210	2.500	350	182,5	209,2
82	82	170	200	2.000	350	164	222,0
90	90	150	180	2.000	350	180	215,0

Size	Displacement [cm³/rev]	Working pressure [bar]	Peak pressure [bar]	Max speed [rpm]	Min working speed [rpm]	Max inlet flow [l/min]	Torque [Nm]
04	4,1	270	320	4.000	500	16,4	17,6
06	6,2	270	320	4.000	500	24,8	26,7
08	8,2	270	320	3.500	500	28,7	35,3
11	11,2	260	310	3.500	500	39,2	46,4
14	14	260	310	3.500	500	49,0	58,0
16	16	250	300	3.000	500	48,0	63,7
20	20	250	300	3.000	500	60,0	79,6
22	22,5	250	300	2.500	500	56,3	89,6
25	25,1	230	280	2.500	500	62,8	91,9
28	28	200	250	2.500	500	70,0	89,2
30	30	190	240	2.000	500	60,0	90,7
