Bankables
Modular directional control valves for hydraulic systems, available in ON/OFF and proportional configurations.
Bankable - On/Off | Bankable-Proportional

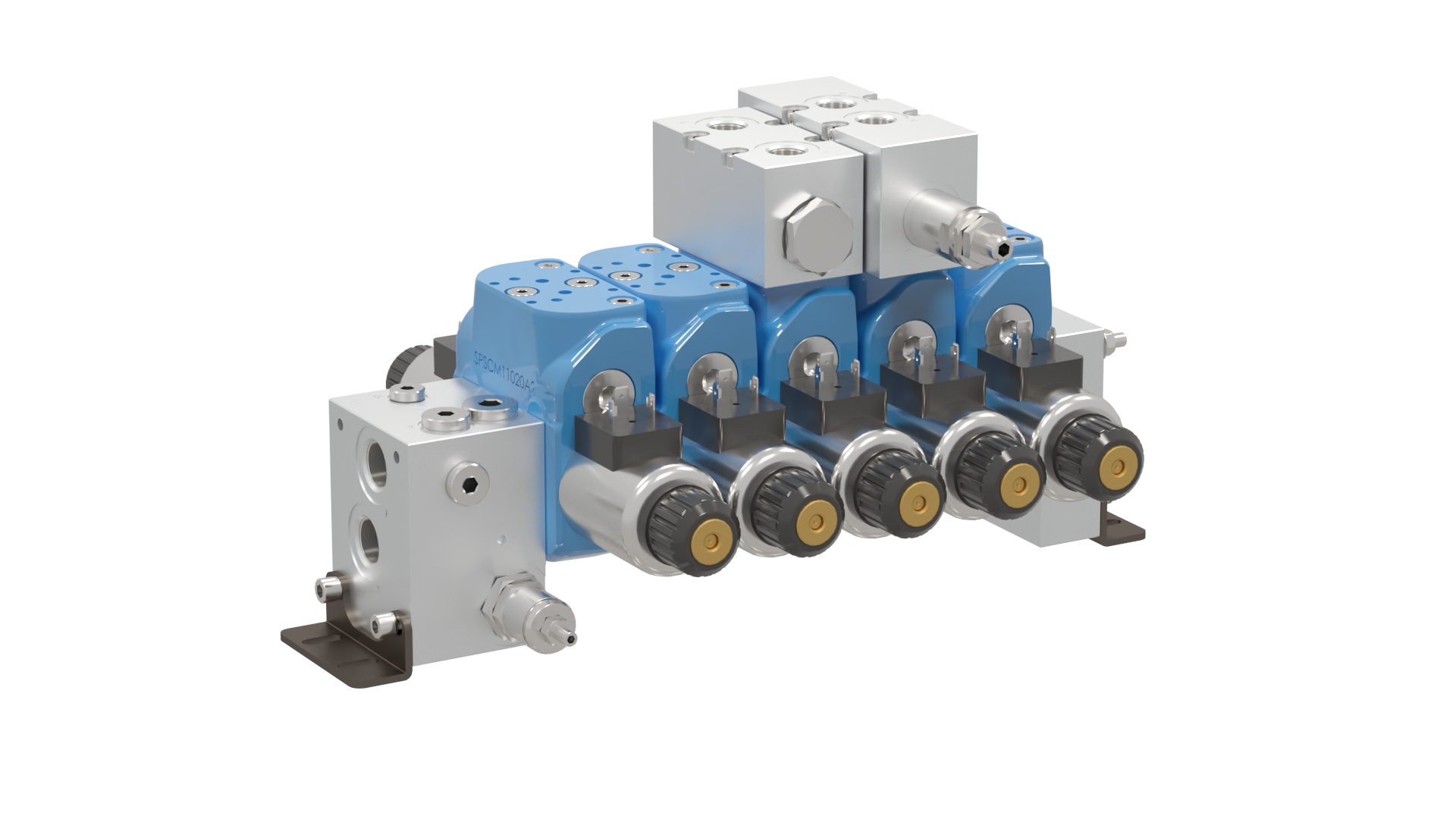

Bankable - On/Off
Bankable ON/OFF directional control valves with compact size.
Features
- Series and parallel connection
- Available for Load Sensing circuits
- Additional functions can be installed on the single slice with modular blocks
- NG6 and NG10 mixed stack available without intermediate sections
- Mixable with proportional bankable valves
- Mixable with HPV41 directional control valve
- For fixed and variable displacement pumps
- Manual lever override
View More Info- Catalog, Spec Sheet Click Here
| Valve | Type | Size | Flow [l/min] |
Working pressure [bar] |
|---|---|---|---|---|
| CDC3 CD3M3 CD3 |
Directional control valve 4/3, 4/2, direct operated | NG 6 | 40 | 310 |
| CDH3 | Pre-compensated, Directional control valve 4/3, 4/2, direct operated | NG 6 | 26 | 300 |
| CD5 | Directional control valve 4/3, 4/2, direct operated | NG 10 | 80 | 310 |

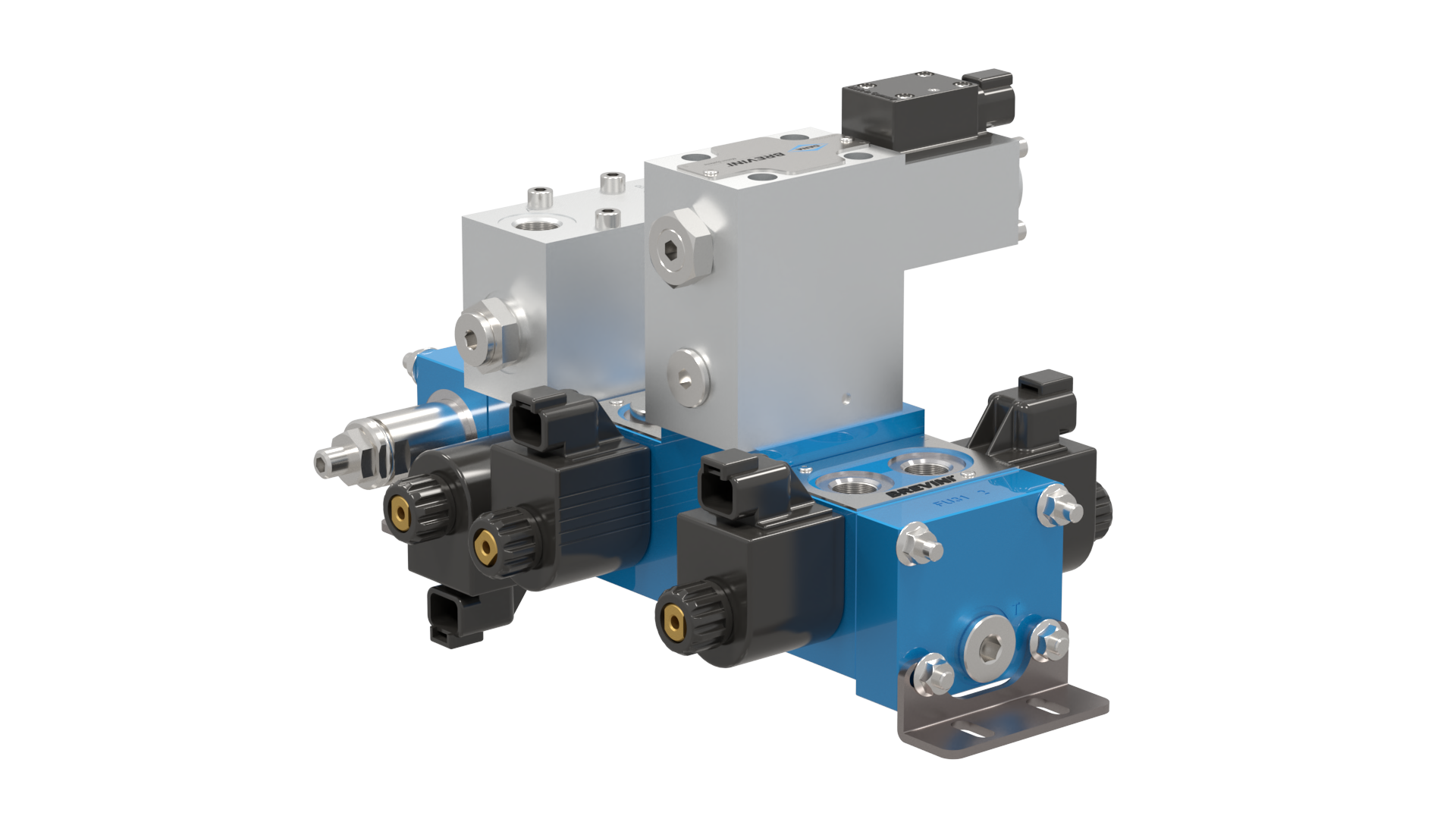

Bankable - Proportional
Bankable ON/OFF directional control valves with compact size.
Bankable proportional directional valves – non-compensated, pre-compensated, flow-sharing options, up to 55 l/min and 310 bar.
Features
- Available for Load Sensing circuits
- Pre and post compensated options
- Exceptionally low pressure drop in post compensated valve for enhanced energy saving
- Simultaneous movements with flow sharing option
- Additional functions can be installed on the single slice with modular blocks
- Compensated flow control valves available
- Mixable with ON/OFF bankable valves
- Mixable with HPV41 directional control valve
- For fixed and variable displacement pumps
- Manual lever override
View More Info- Catalog, Spec Sheet Click Here
| Valve | Type | Size | Flow [l/min] |
Working pressure [bar] |
|---|---|---|---|---|
| CX3 | Proportional directional control valve 4/3, 4/2, direct operated | NG 6 | 20 | 310 |
| CXQ3 | Proportional flow control valve, direct operated with integrated 3-way pressure compensator |
NG 6 | 25 | 250 |
| CXDH3 | directional control valve 4/3, 4/2, direct operated | NG 6 | 35 | 300 |
| CFS3 | Post-compensated (flow sharing), Proportional directional control valve 4/3, 4/2, direct operated |
NG 6 | 55 | 310 |
