Axial Piston Pumps - Variable Displacement (Open Loop)

Series of variable displacement pumps designed for heavy-duty industrial and mobile applications.

Brand

Related Markets

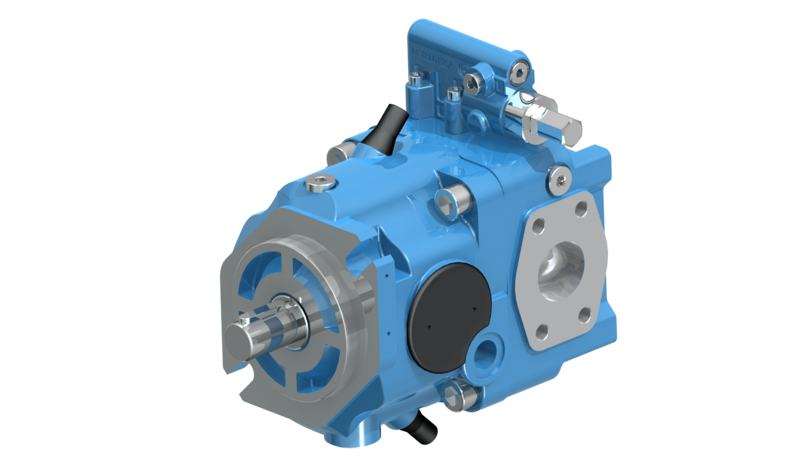

S5AV

General purpose swashplate variable displacement pump.

Displacement range [cm³/rev]	Max flow [l/min] ]	Max working pressure [bar]	Max speed [rpm]
32 - 93,1	197	350	3.150

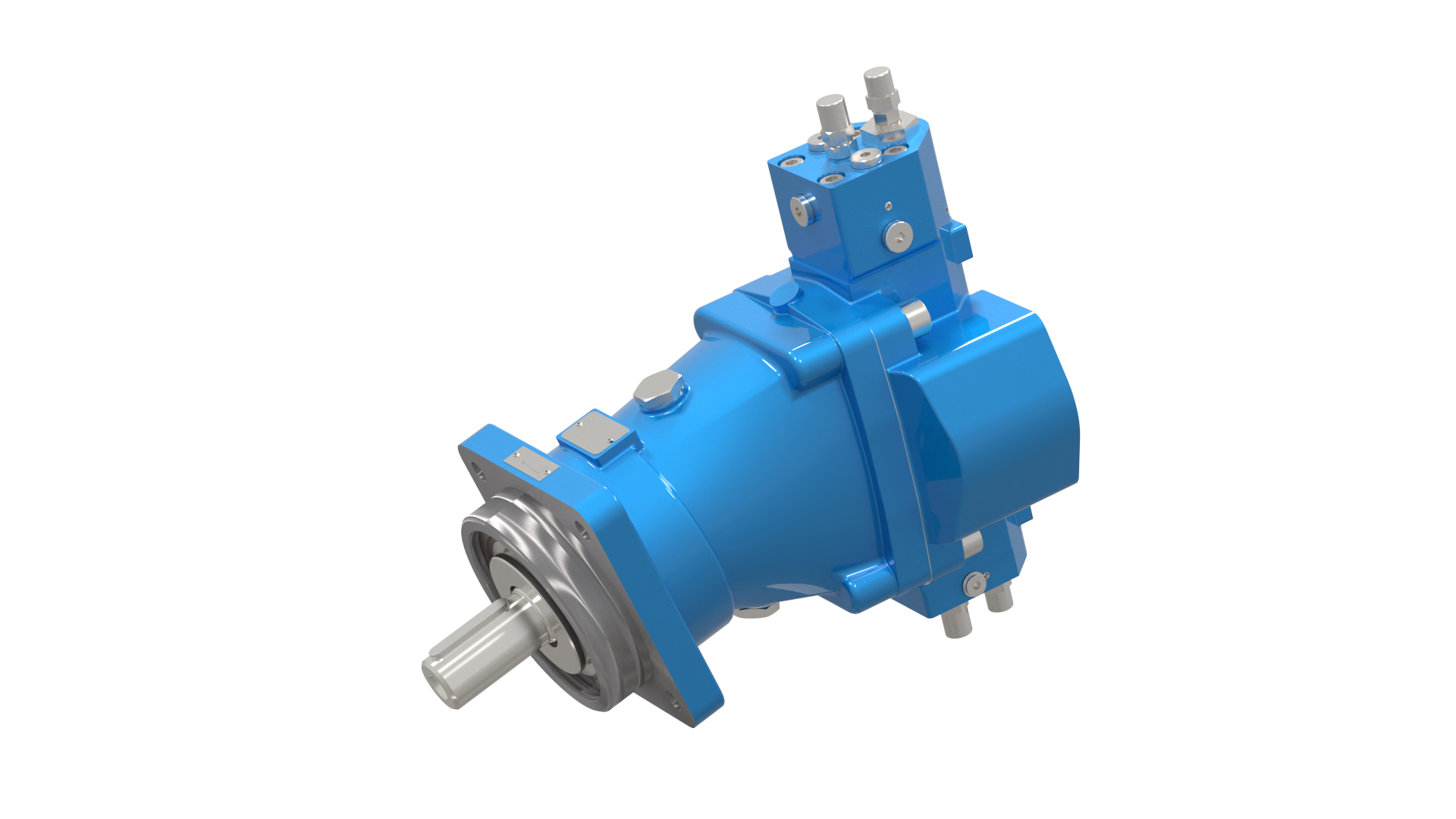

General purpose bent axis variable displacement pump.

Displacement range [cm³/rev]	Max flow [l/min] ]	Max working pressure [bar]	Max speed [rpm]
55 - 225,1	338	350	3.300

Size	Displacement [cm³/rev]	Working pressure [bar]	Peak pressure [bar]	Speed at Vg max [rpm]	Speed at Vg min [rpm]	Flow [l/min]	Weight [kg]
32	32	280	350	3.150	500	100	19
45	43,3	300	350	2.700	500	117	20
50	49,65	380	450	3.000	500	149	30
63	63,98	380	450	2.500	500	160	31
75	75	350	420	2.250	500	169	42
93	93,76	320	380	2.100	500	197	44

Size	Displacement [cm³/rev]	Working pressure [bar]	Peak pressure [bar]	Speed at Vg max [rpm]	Speed at Vg min [rpm]	Flow [l/min]	Weight [kg]
55	54,8	350	450	2.600	3.300	143	30
75	75,3	350	450	2.300	2.900	173	42
108	107,5	350	450	2.000	2.600	215	55
160	160,8	350	450	1.800	2.300	289	77
226	225,1	350	450	1.500	1.900	338	107
