Axial Piston Pumps - Variable Displacement (Closed Loop)
Series of closed variable displacement pumps designed for heavy-duty industrial and mobile applications.
HD1
New series of heavy-duty high efficiency variable displacement pump for closed loop operation.
Features
- Broad range of ratios, 3.07 to 6.14, supporting a variety of vocations
- Swashplate design
- Closed loop circuits
- ISO and SAE version
- Wide control range: mechanical, hydraulic and electronic
- Through drive option with 100% torque transmission
- Built-in charge pump, gerotor type
- Swivel angular sensor for advanced control option
- Smooth flow direction transition
- Pressure filter available
View More Info - Spec Sheet Click Here View General Catalog Click Here
| Displacement range [cm³/rev] |
Max flow [l/min] ] |
Max working pressure [bar] |
Max speed [rpm] |
|---|---|---|---|
| 55 | 209 | 450 | 3.800 |

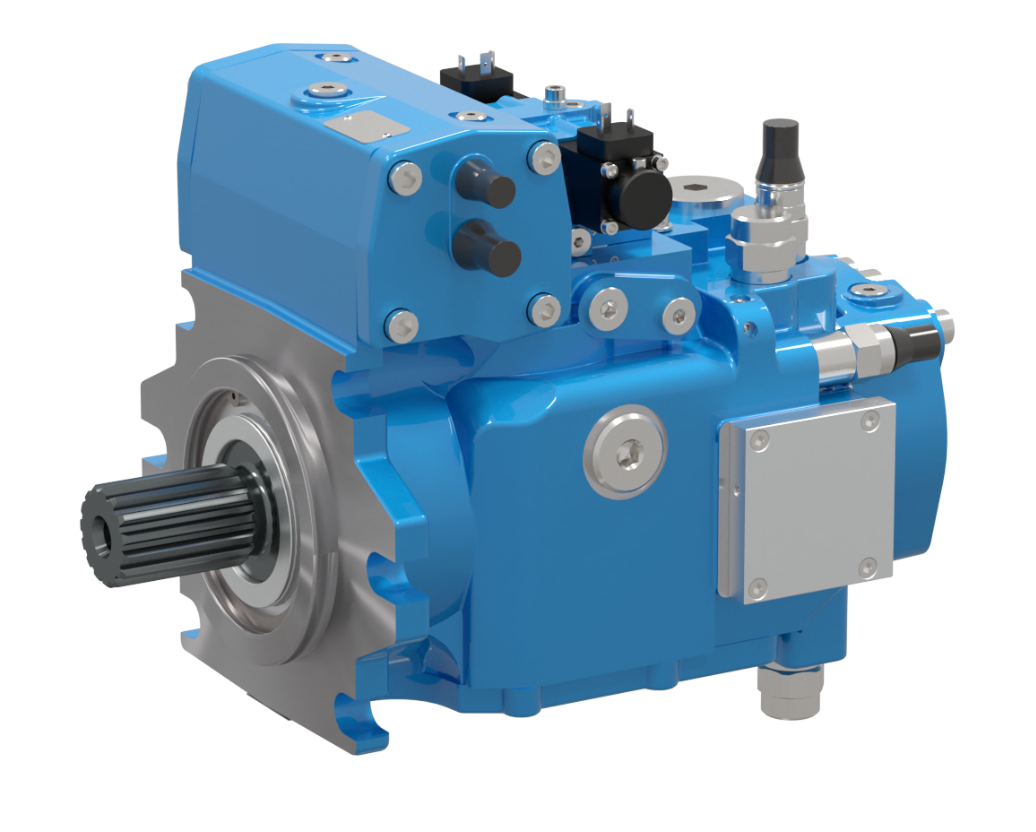

S6CV
Heavy duty variable displacement pump for closed loop operation.
Features
- Swashplate design
- Closed loop circuits
- ISO and SAE version
- Wide control range
- Through drive option with 100% torque transmission
- Built-in charge pump, gerotor type
- Pressure filter available
View More Info - Spec Sheet Click Here View General Catalog Click Here
| Displacement range [cm³/rev] |
Max flow [l/min] ] |
Max working pressure [bar] |
Max speed [rpm] |
|---|---|---|---|
| 75 - 128 | 365 | 400 | 3.400 |
HD1 Tech Data
| Size | Max displacement [cm³/rev] |
Working pressure [bar] |
Peak pressure [bar] |
Continuous speed [rpm] |
Intermittent speed [rpm] |
Flow [l/min] |
Power [kW] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|
| 55 | 55 | 450 | 480 | 3.800 | 4.000 | 209 | 157 | 46 |
S6CV Tech Data
| Size | Max displacement [cm³/rev] |
Working pressure [bar] |
Peak pressure [bar] |
Continuous speed [rpm] |
Intermittent speed [rpm] |
Flow [l/min] |
Power [kW] |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|
| 75 | 81 | 400 | 450 | 3.400 | 3.600 | 255 | 170 | 51 |
| 128 | 136 | 400 | 450 | 2.850 | 3.250 | 365 | 259 | 86 |
