Axial Piston Pumps - Fixed Displacement (Open and Closed Loop)
Series of fixed displacement pumps for operation in open circuit. Designed for heavy-duty industrial and mobile applications.

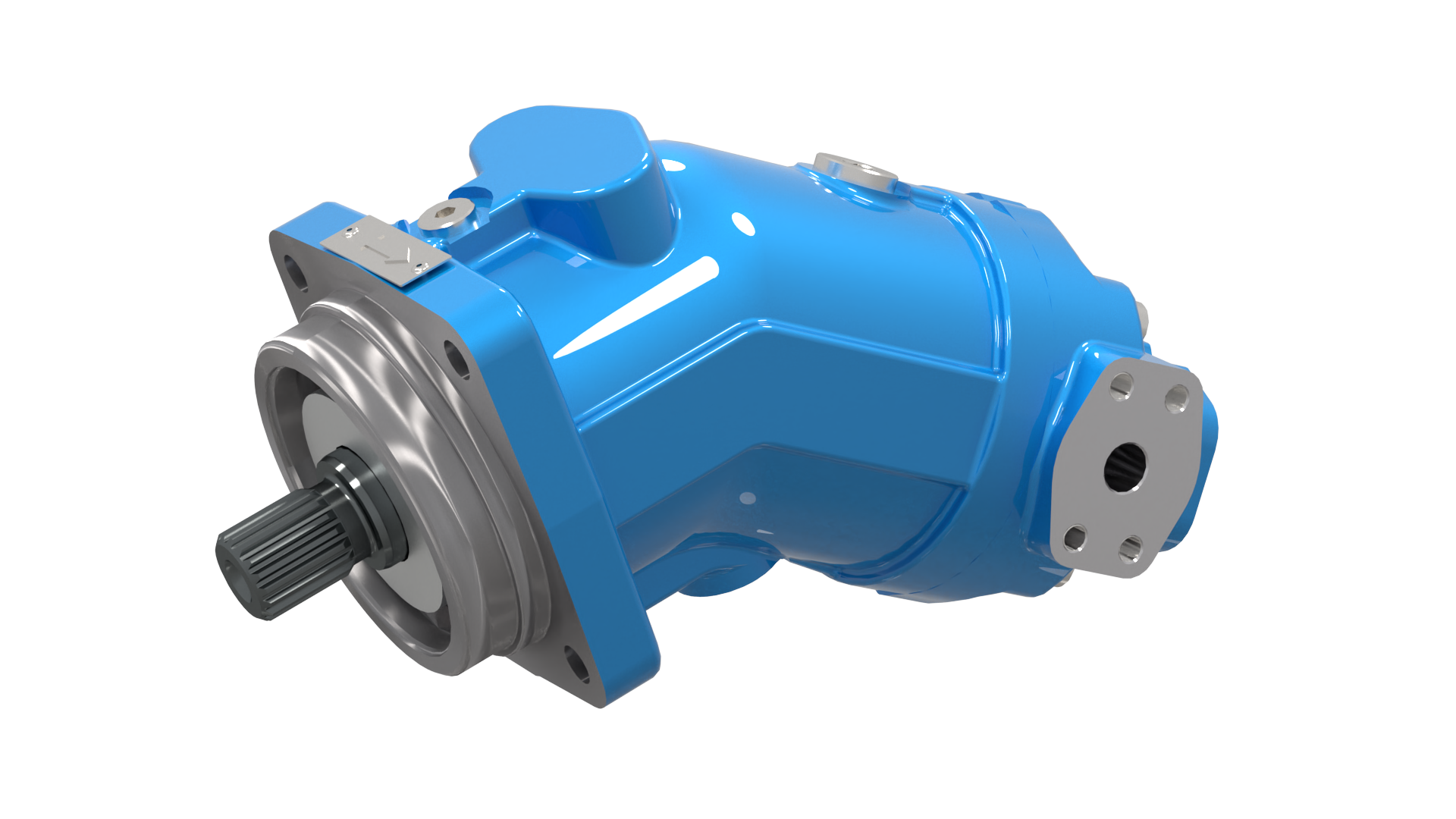

SH11C
General purpose bent axis fixed displacement pumps for operation in open circuit. Available in a wide range of option, SH11C series is the ideal solution for heavy duty applications, both mobile and industrial.
Features
- Fixed displacement high pressure pump for general use
- 40° bent angle for high power density
- Open loop circuits
- ISO and SAE version
- Working pressure 430 bar
- Peak pressure 480 bar
View More Info - Spec Sheet Click Here View General Catalog Click Here
| Displacement range [cm³/rev] |
Max flow [l/min] ] |
Max working pressure [bar] |
Max speed [rpm] |
|---|---|---|---|
| 10,3 - 178,1 | 258 | 430 | 2.500 |
SH11C Tech Data
| Size | Displacement [cm³/rev] |
Max working pressure [bar] |
Peak pressure [bar] |
Max working speed [rpm] |
Max flow [l/min] |
Weight [kg] |
|---|---|---|---|---|---|---|
| 10 | 10,3 | 430 | 480 | 3.150 | 32 | 6 |
| 16 | 16 | 430 | 480 | 3.150 | 50 | 6 |
| 20 | 19,9 | 430 | 480 | 2.500 | 50 | 10 |
| 30 | 31,9 | 430 | 480 | 2.500 | 80 | 10 |
| 55 | 56,35 | 430 | 480 | 2.000 | 113 | 19 |
| 63 | 63,26 | 430 | 480 | 2.000 | 127 | 19 |
| 75 | 77,82 | 430 | 480 | 1.800 | 140 | 24 |
| 90 | 86,23 | 430 | 480 | 1.800 | 155 | 24 |
| 108 | 108,4 | 430 | 480 | 1.600 | 173 | 35 |
| 125 | 124,8 | 430 | 480 | 1.550 | 193 | 35 |
| 160 | 163,9 | 430 | 480 | 1.450 | 238 | 48 |
| 180 | 178,1 | 430 | 480 | 1.450 | 258 | 48 |
