Axial Piston Motors - Fixed Displacement (Open and Closed Loop)
Series of fixed displacement axial piston motors designed for heavy-duty industrial and mobile applications.

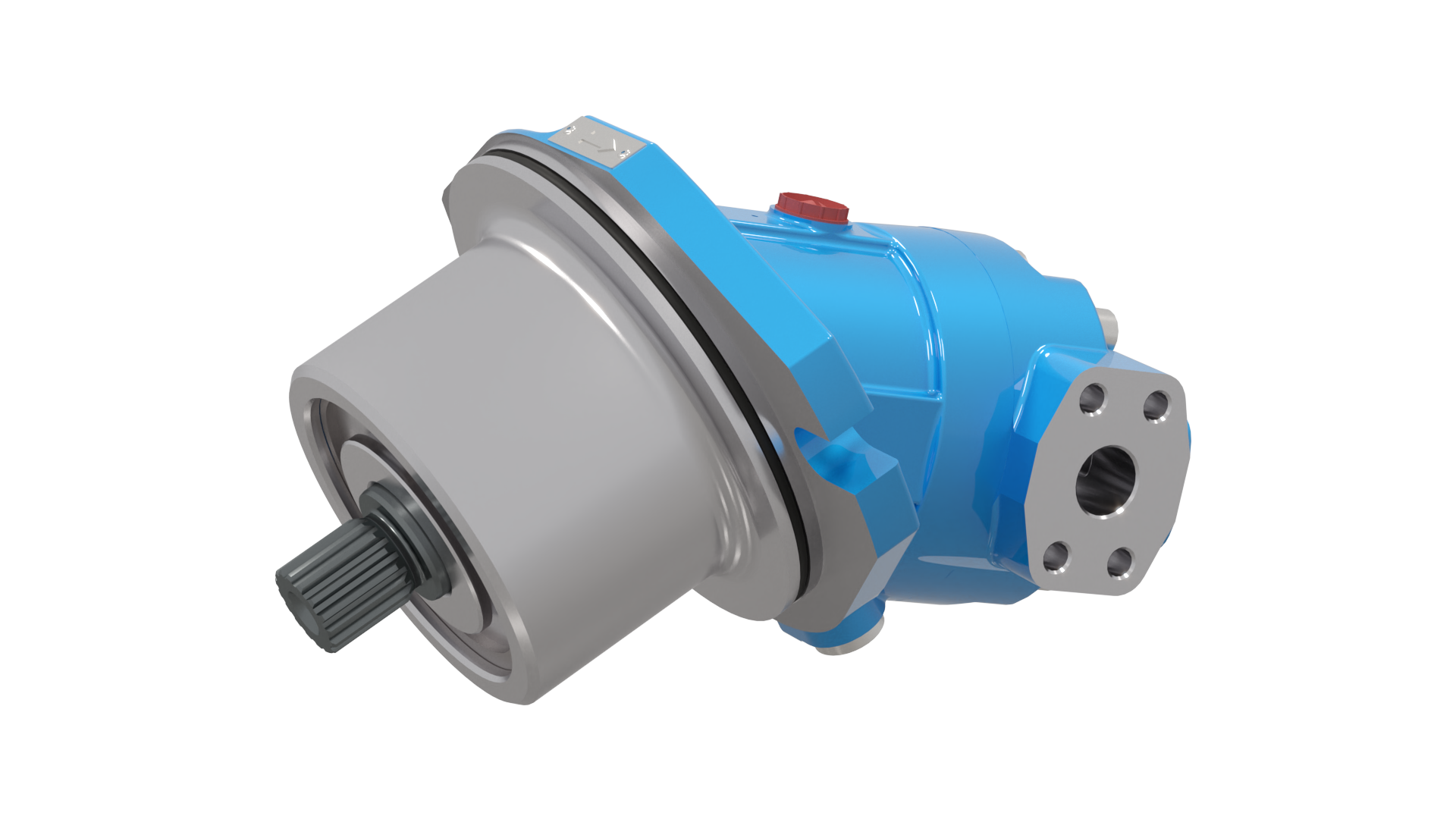

SH11C/CR
Fixed displacement high pressure axial piston motor, bent axis design.
Fixed displacement high pressure axial piston motor, bent axis design.
Features
- Fixed displacement high pressure motor
- Open and closed circuit
- 40° bent angle for high power density
- Flanged mounting for general use
- Cartridge/Pug in mounting for integration in gearboxes
- ISO and SAE version
Additional Options
- Flushing valves
- Overcentre valves
- Anti-shock valves
- Check valves
- Speed and direction sensor
View More Info- Catalog, Spec Sheet Click Here
| Displacement range [cm³/rev] |
Max flow [l/min] ] |
Max working pressure [bar] |
Max speed [rpm] |
|---|---|---|---|
| 10,3 - 178,1 | 641 | 430 | 8.000 |
H1C/CR
Fixed displacement high pressure axial piston motor, bent axis design.
Features
- Fixed displacement high pressure motor
- Open and closed circuit
- 25° bent angle
- Flanged mounting for general use
- 45cc cartridge/plug-in mounting for integration in gearboxes
- ISO and SAE version
Additional Options
- Flushing valves
- Overcentre valves
- Anti-shock valves
- Check valves
- Speed and direction sensor
View More Info- Catalog, Spec Sheet Click Here
| Displacement range [cm³/rev] |
Max flow [l/min] ] |
Max working pressure [bar] |
Max speed [rpm] |
|---|---|---|---|
| 6,1 - 225,1 | 540 | 350 | 6.000 |
SH11C/CR Tech Data
| Size | Displacement [cm³/rev] |
Working pressure [bar] |
Peak pressure [bar] |
Max speed (at Vg max) [rpm] |
Max speed (at Vg min) [rpm] |
Max inlet flow [l/min] |
Torque [Nm] |
|---|---|---|---|---|---|---|---|
| 10 | 10,3 | 430 | 480 | 8.000 | 82 | 71 | |
| 16 | 15,0 | 430 | 480 | 8.000 | 128 | 110 | |
| 20 | 19,9 | 430 | 480 | 6.300 | 125 | 136 | |
| 30 | 31,9 | 430 | 480 | 6.300 | 201 | 218 | |
| 45 | 46,0 | 430 | 480 | 5.600 | 257 | 315 | |
| 55 | 56,4 | 430 | 480 | 5.000 | 282 | 386 | |
| 63 | 63,3 | 430 | 480 | 5.000 | 316 | 433 | |
| 75 | 77,8 | 430 | 480 | 4.500 | 350 | 544 | |
| 90 | 86,2 | 430 | 480 | 4.500 | 388 | 590 | |
| 108 | 108,4 | 430 | 480 | 4.000 | 433 | 742 | |
| 125 | 124,8 | 430 | 480 | 4.000 | 500 | 855 | |
| 160 | 163,9 | 430 | 480 | 3.600 | 590 | 1.122 | |
| 180 | 178,1 | 430 | 480 | 3.600 | 641 | 1.219 |
SH9V/VR Tech Data
| Size | Displacement [cm³/rev] |
Working pressure [bar] |
Peak pressure [bar] |
Max speed (at Vg max) [rpm] |
Max speed (at Vg min) [rpm] |
Max inlet flow [l/min] |
Torque [Nm] |
|---|---|---|---|---|---|---|---|
| 6 | 6,1 | 350 | 450 | 6.000 | 36,4 | 33,8 | |
| 12 | 10,9 | 350 | 450 | 5.590 | 61 | 60,5 | |
| 40 | 40,1 | 350 | 450 | 4.350 | 175 | 223 | |
| 45 | 44,3 | 350 | 450 | 4.200 | 186 | 247 | |
| 226 | 225,1 | 350 | 450 | 2.400 | 540 | 1.254 |
