Hydraulic Proportional Valves (HPV)
The HPV series consists of pre-compensated directional proportional valves designed for load-sensing (LS) and open-center circuits.

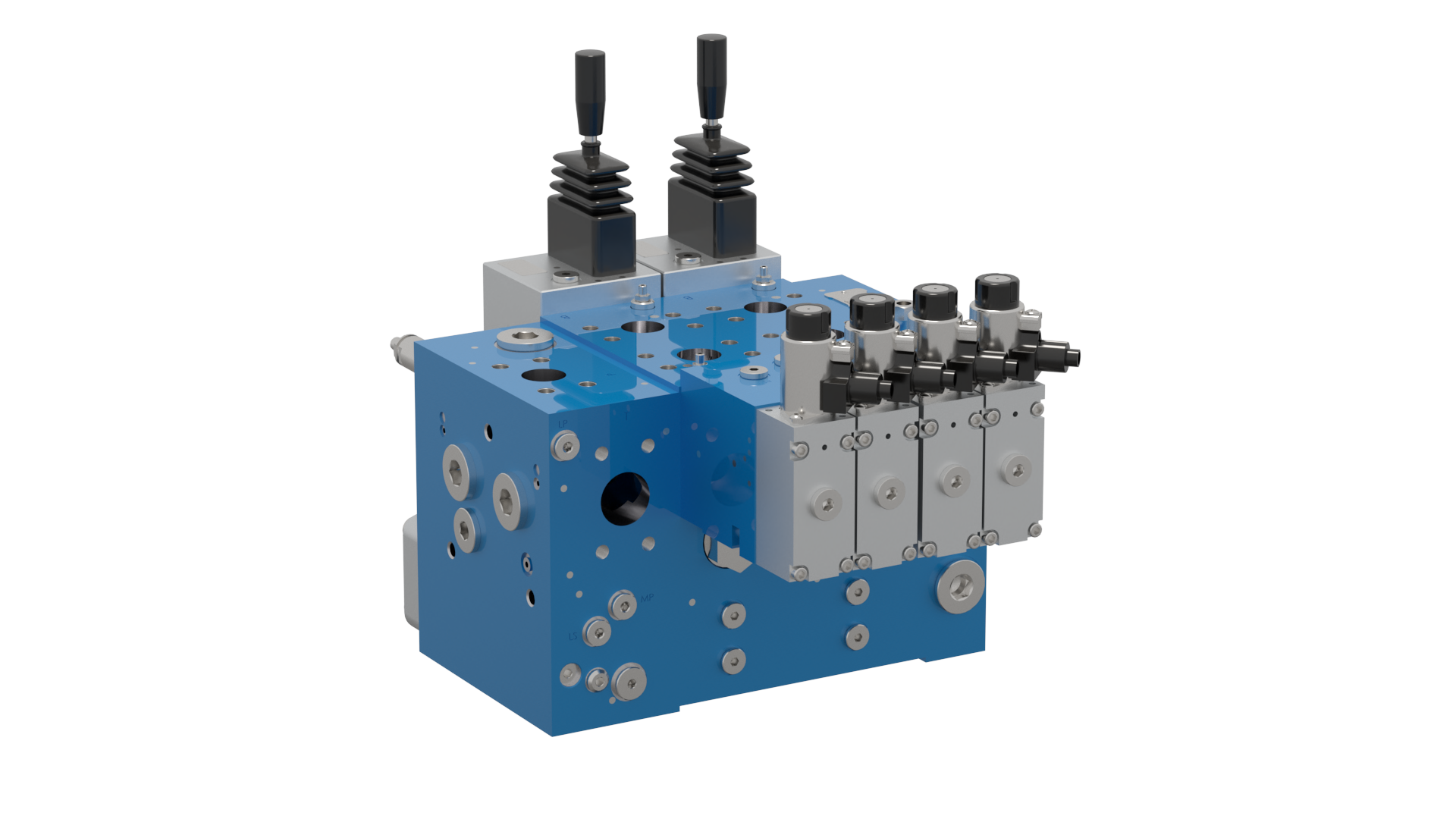

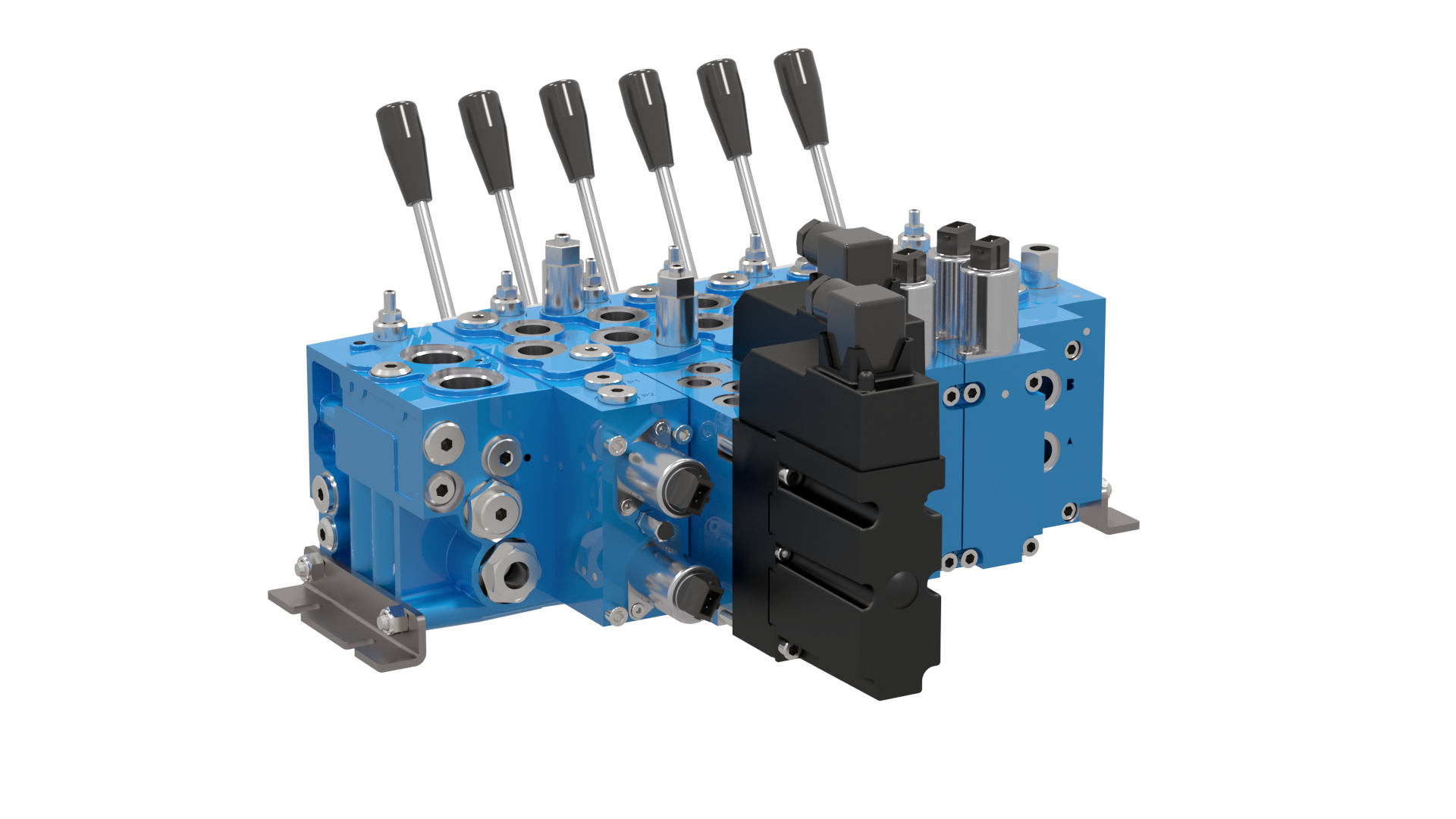

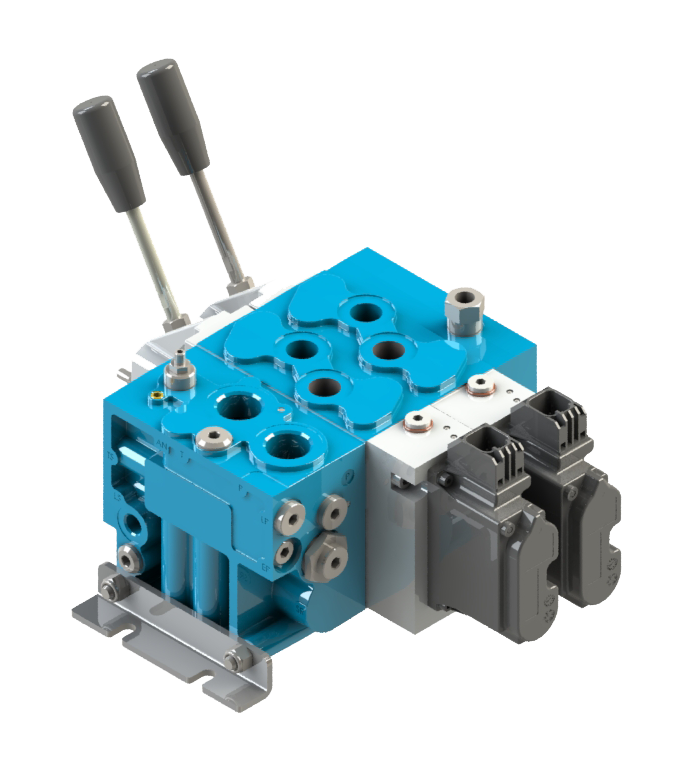

HPV 41
Pre-compensated directional proportional valve,suitable for load-sensing (LS) and open center circuits, up to 130 l/min.
Features
- Sandwich design for ease of configuration, service and interchangeability
- Flexible design: all HPV sizes can be mixed to create the best solution
- Easy integration with bankable valves range
- Excellent flow control, independent from load pressure of other functions
- Individual function flow independent from the function load pressure
- Low hysteresis
- Atex certification
- Marine version
Options
- Electrohydraulic modules with open or closed loop control, current or voltage input signal
- Electromechanically operated MSB module with step motor
- Remote control of operating pressure of each port
- Electrical unloading of the LsA and LsB signals on each element
- Cut-off function on each single slice
- LS pressure adjustable setting on each operating connection
- Antishock-Anticavitation valves on each operating connection, fixed and adjustable settings
- Wide range of remote controls: hydraulic, electro-hydraulic and electronic
- Priority module for hydraulic steering units
- Direction of spool movement sensor
View More Info- Catalog, Spec Sheet Click Here
| Inlet section rated flow [l/min] |
Spool rated flow [l/min] ] |
Max working pressure [bar] |
Max sections |
|---|---|---|---|
| 160 | 3 - 130 | 370 | 10 |

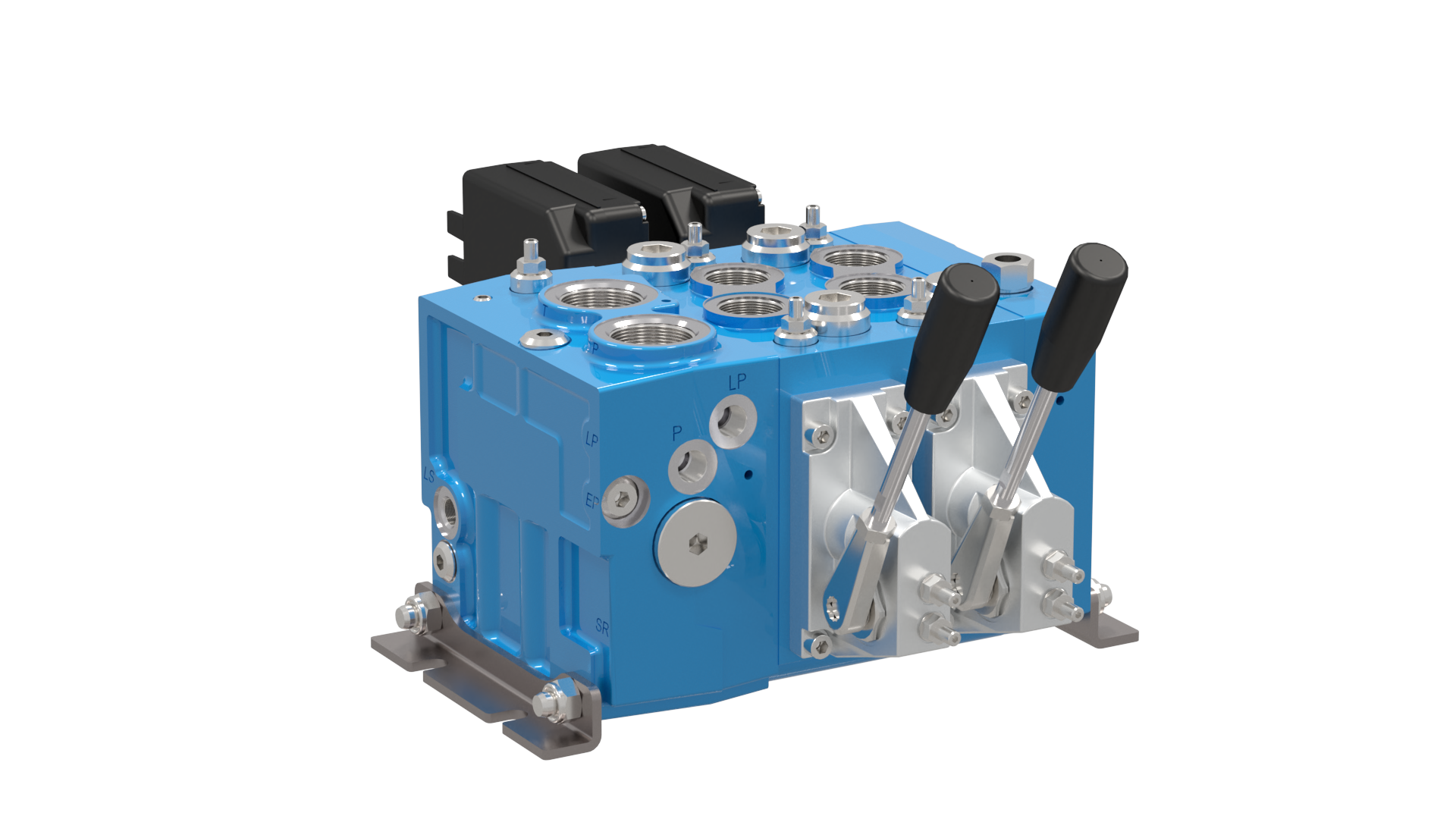

HPV 77
Pre-compensated directional proportional valve, suitable for LS and open center circuits, up to 220 l/min.
Features
- Sandwich design for ease of configuration, service and interchangeability
- Flexible design: all HPV sizes can be mixed to create the best solution
- Easy integration with bankable valves range
- Excellent flow control, independent from load pressure of other functions
- Individual function flow independent from the function load pressure
- Low hysteresis
- Atex certification
- Marine version
Options
- Electrohydraulic modules with open or closed loop control, current or voltage input signal
- Electromechanically operated MSB module with step motor
- Remote control of operating pressure of each port
- Electrical unloading of the LsA and LsB signals on each element
- Cut-off function on each single slice
- LS pressure adjustable setting on each operating connection
- Antishock-Anticavitation valves on each operating connection, fixed and adjustable settings
- Wide range of remote controls: hydraulic, electro-hydraulic and electronic
- Priority module for hydraulic steering units
- Direction of spool movement sensor
View More Info- Catalog, Spec Sheet Click Here
| Inlet section rated flow [l/min] |
Spool rated flow [l/min] ] |
Max working pressure [bar] |
Max sections |
|---|---|---|---|
| 600 | 180 - 500 | 370 | 6 |
HPV 310
Pre-compensated directional proportional valve, suitable for LS and open center circuits, up to 500 l/min.
Features
- Sandwich design for ease of configuration, service and interchangeability
- Flexible design: all HPV sizes can be mixed to create the best solution
- Easy integration with bankable valves range
- Excellent flow control, independent from load pressure of other functions
- Individual function flow independent from the function load pressure
- Low hysteresis
- Atex certification
- Marine version
Options
- Electrohydraulic modules with open or closed loop control, current or voltage input signal
- Electromechanically operated MSB module with step motor
- Remote control of operating pressure of each port.
- Electrical unloading of the LsA and LsB signals on each element
- Cut-off function on each single slice
- LS pressure adjustable setting on each operating connection
- Antishock-Anticavitation valves on each operating connection, fixed and adjustable settings
- Wide range of remote controls: hydraulic, electro-hydraulic and electronic
- Priority module for hydraulic steering units
- Direction of spool movement sensor
View More Info- Catalog, Spec Sheet Click Here
| Inlet section rated flow [l/min] |
Spool rated flow [l/min] ] |
Max working pressure [bar] |
Max sections |
|---|---|---|---|
| 600 | 180 - 500 | 370 | 6 |
